Suitable for hazardous environments where flammable gases, vapours, and liquids may exist
Suited for wet locations, marine environments, and high-vibration applications
Die-cast aluminum - Grey finish
IP66 driver in a separate compartment with 10kV surge protection
C1, D2, (Groups A,B,C,D), UL844, UL1598, UL8750
Atex II 2 G Ex db IIC T6 Gb
Faceted reflectors in each LED chip for glare control and beam precision
3 x 3/4'' NPT conduit entry points for added flexibility
Tempered glass lens allows for soft, uniform light
Suspension kit included
Yoke Mount available, ordered separately
Certifications:
cUL, IK08
Garantie CSC LED:
5 Year Warranty
Numéro de produit:

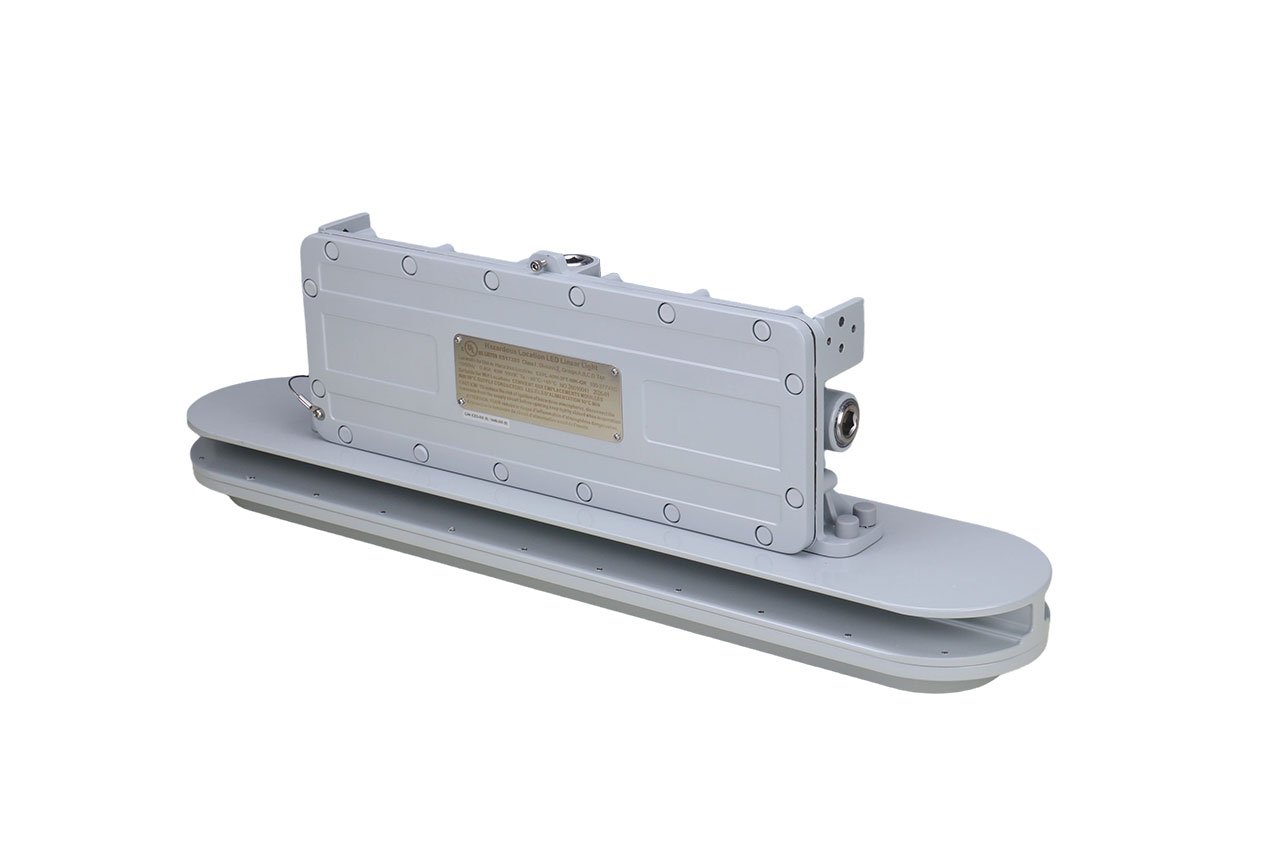

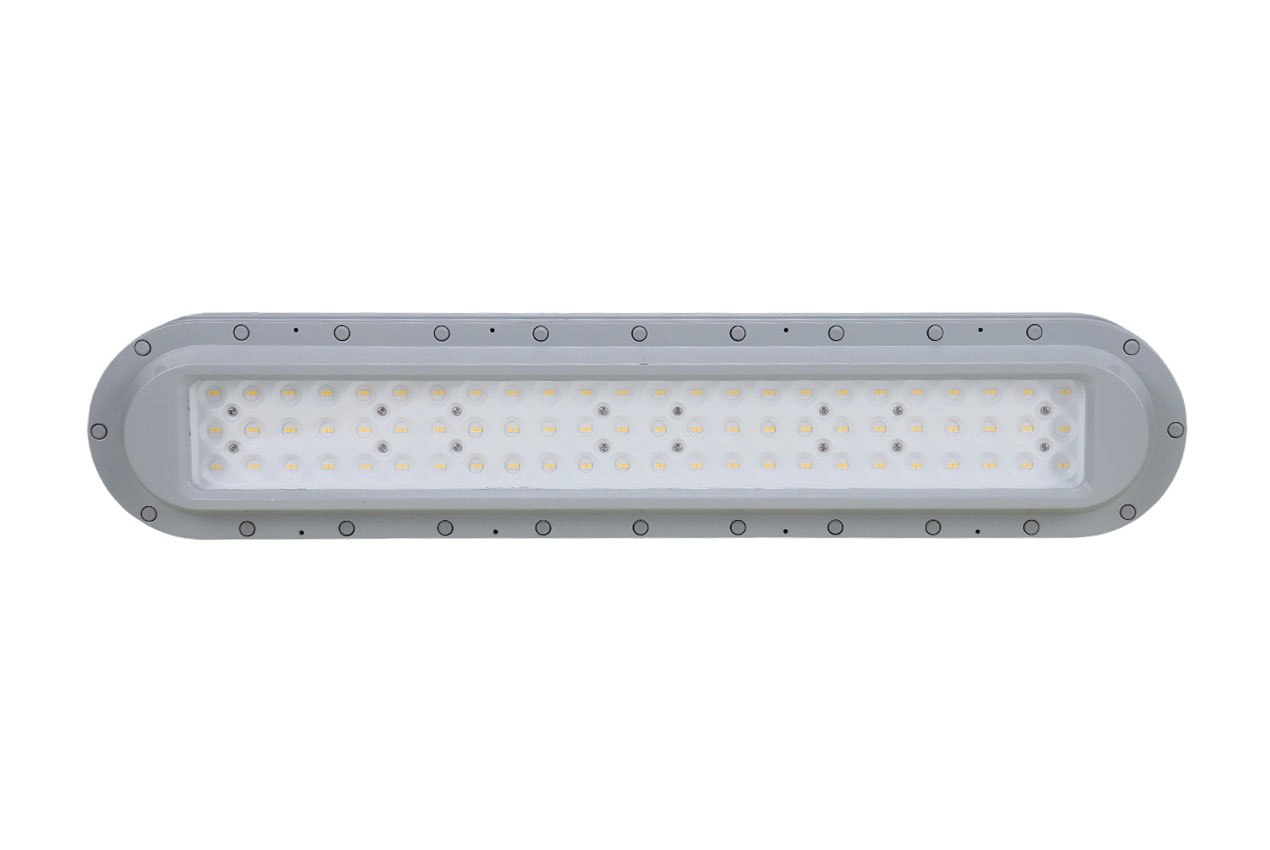

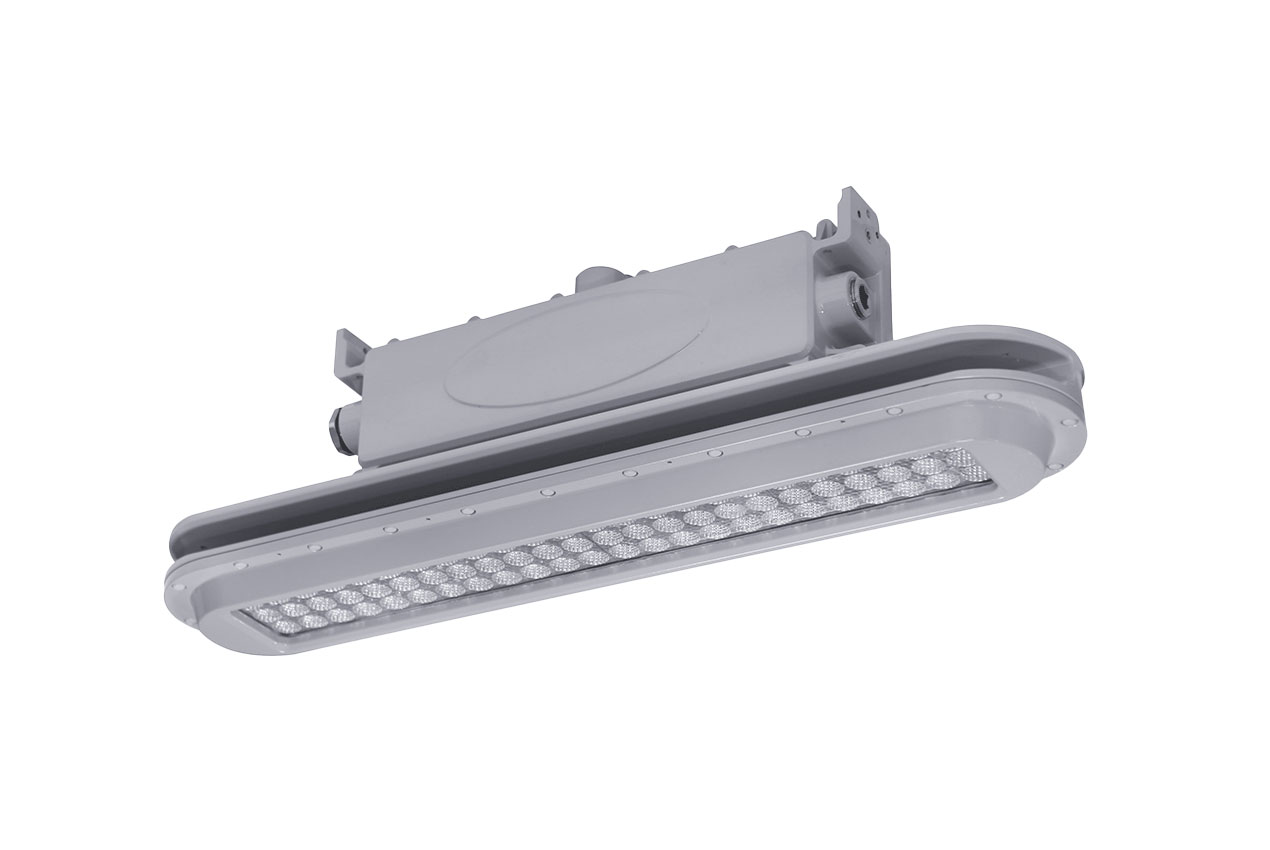

EXPL-40W-2FT-50K-GR
Caractéristiques lumineuses
Angle du faisceau:
110 x 100
Température de couleur:
5000 K
IRC:
70+
Dimmable:
Yes
Efficacité:
130 LM/W
Lumens initiaux:
5881 lm
Durée de vie (L70):
>50,000 hrs
Caractéristiques électriques
Indice IP:
IP 66
Température de fonctionnement:
-40°C to 65°C
Power Factor:
0.99
DHT:
<20%%
Tension:
120-277V
Watts:
40W
Caractéristiques de construction
Couleur de finition:
Grey
Boîtier:
Aluminum
Logistique
Poids unitaire:
12.5 lbs
Qté par carton principal:
1
Poids du carton principal:
28.0 lbs
Longueur du carton principal:
30.0 in
Largeur du carton principal:
9.0 in
Hauteur du carton principal:
12.0 in
Qté par palette:
45
CUP:
845599002505
GTIN:
10845599002502
