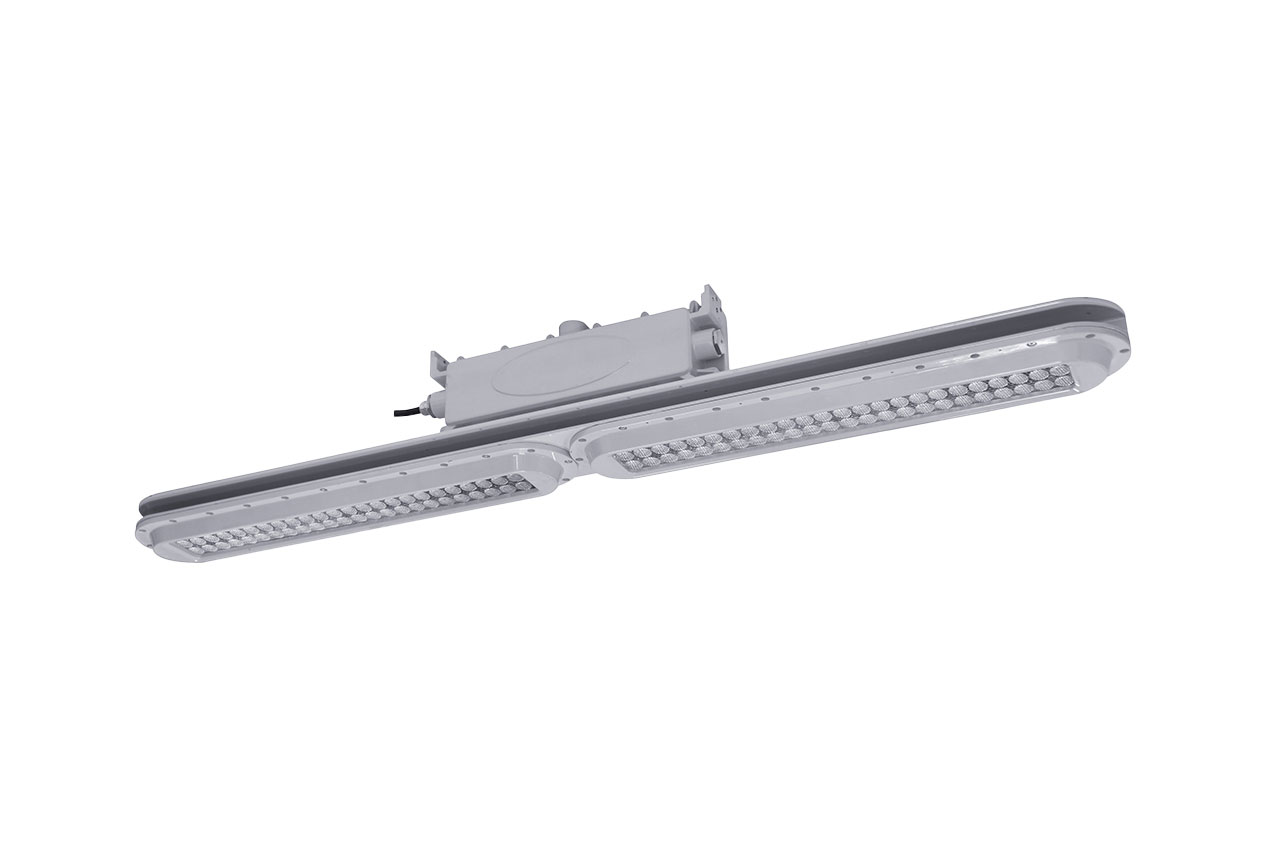

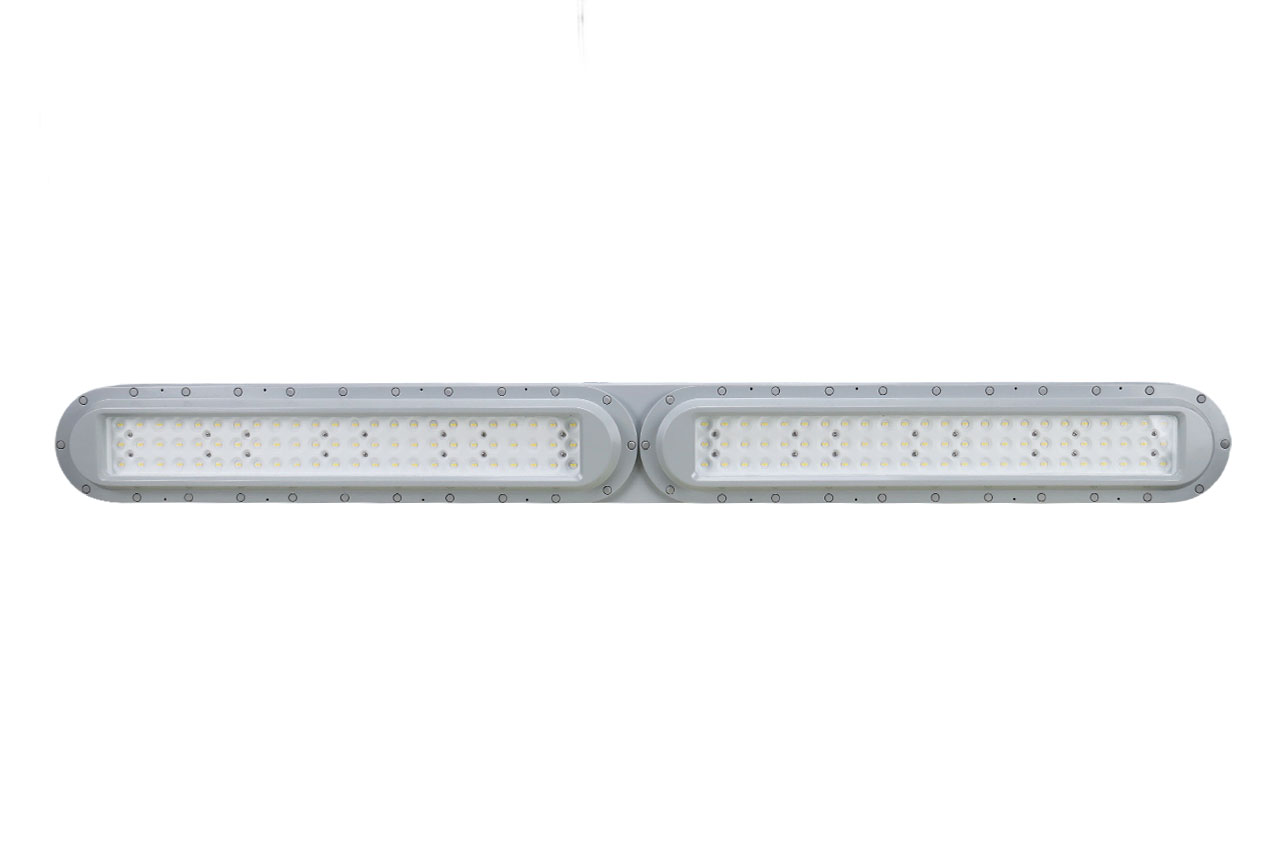

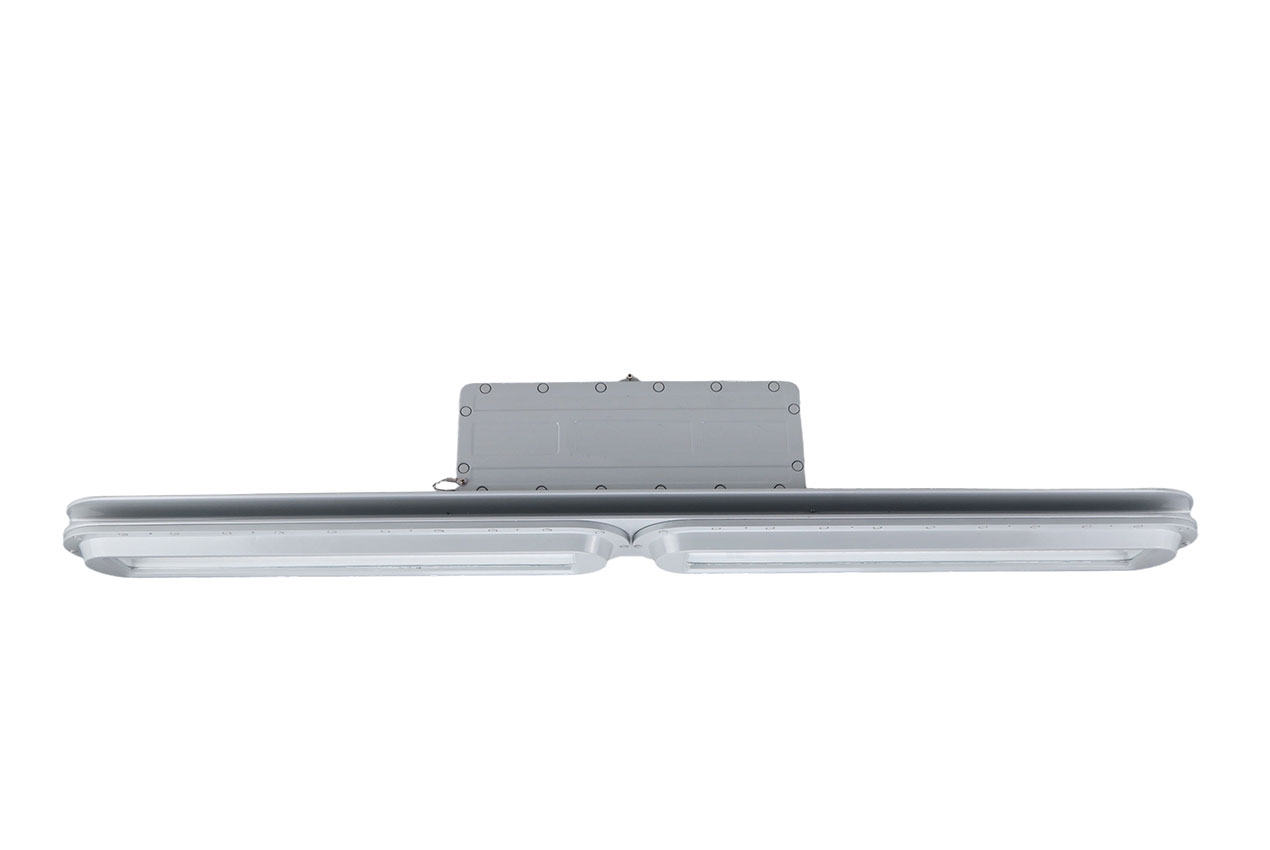

EXPL-80W-4FT-50K-GR
3 avis
Linear Explosion-Proof / Hazloc
80W l 5000K l 120-277V | 11202 lm | 4ft
GTIN / UPC : 10845599002519
Code-barres : 845599002512
3 avis
Suitable for hazardous environments where flammable gases, vapours, and liquids may exist
Also suited for wet locations, marine environments, and high-vibration applications
Die-cast aluminum - Grey finish
IP66 driver in a separate compartment with 10kV surge protection
C1, D2, (Groups A,B,C,D), UL844, UL1598, UL8750
Atex II2G Ex db IIC T6 Gb
Faceted reflectors in each LED chip for glare control and beam precision
3 x 3/4'' NPT conduit entry points for added flexibility
Tempered glass lens allows for soft, uniform light
Suspension kit included
Yoke Mount available, ordered separately
Certifications Listed:
cUL, IK08
CSC LED Warranty:
5 Year Warranty
Product Number:
EXPL-80W-4FT-50K-GR
Light Specifications
Beam Angle:
110 x 100
Colour Temperature:
5000K
CRI:
>70
Dimmable:
Yes
Efficacy:
130 LM/W
Initial Lumens:
11202 lm
Life (L70):
>50,000 hrs
Electrical Specifications
IP Rating:
IP66
Operating Temperature:
-40°C to 65°C
Power Factor:
0.91
THD:
<20%%
Voltage:
120-277V
Watts:
80W
Construction Specifications
Finish Colour:
Grey
Housing:
Aluminum
Logistics
Unit Weight:
19.59 lbs
Qty per Master Carton:
1
Master Carton Weight:
28.0 lbs
Master Carton Length:
56.0 in
Master Carton Width:
9.0 in
Master Carton Height:
13.0 in
Qty per Skid:
22
