EXPR-150W-50K-GR
1 avis

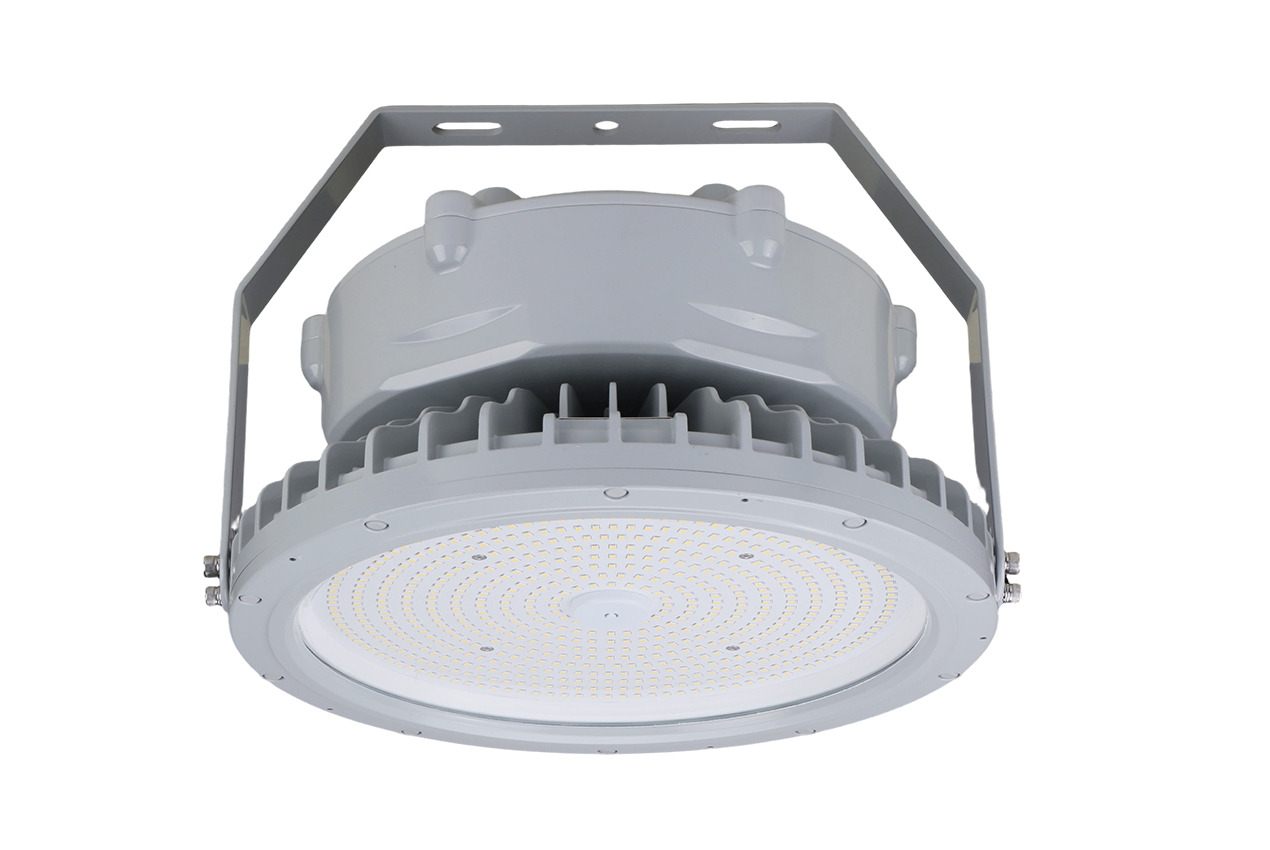

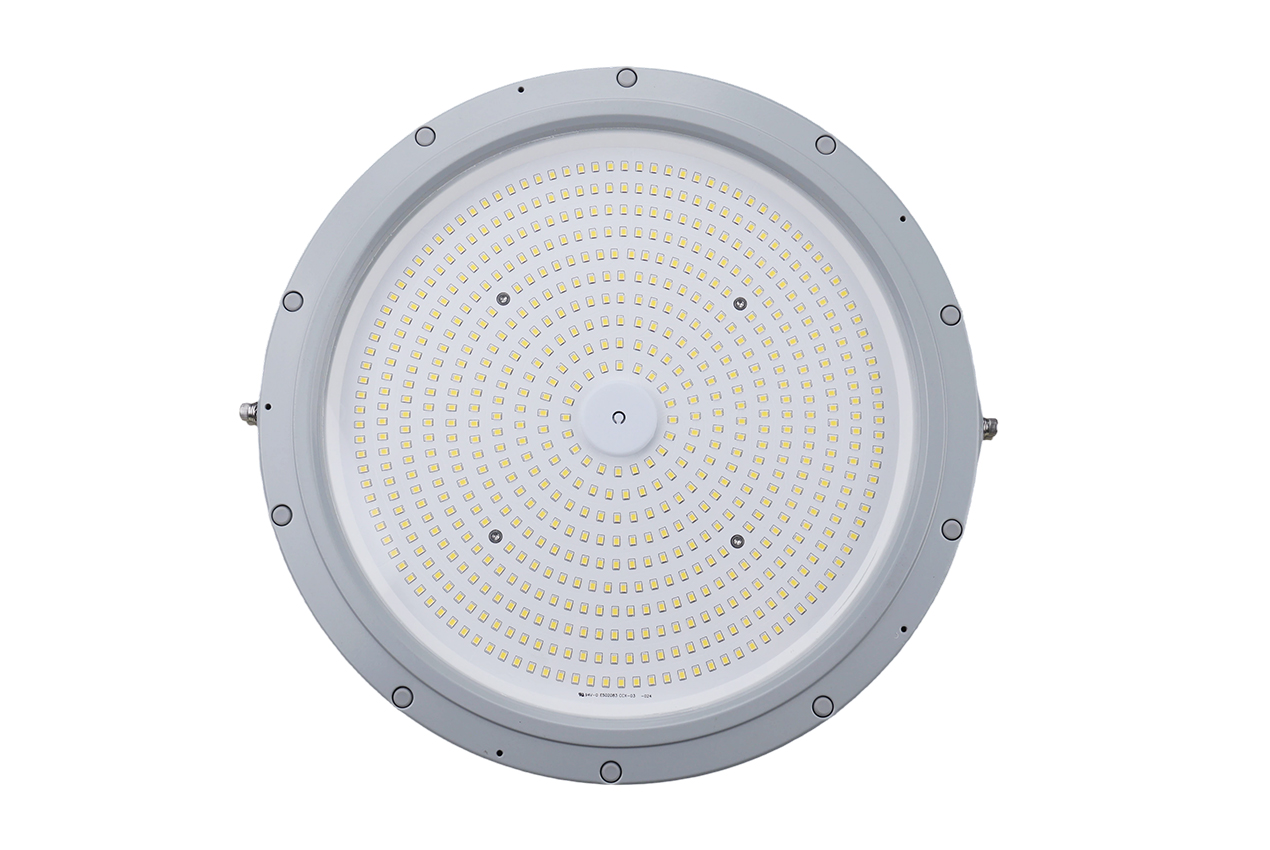

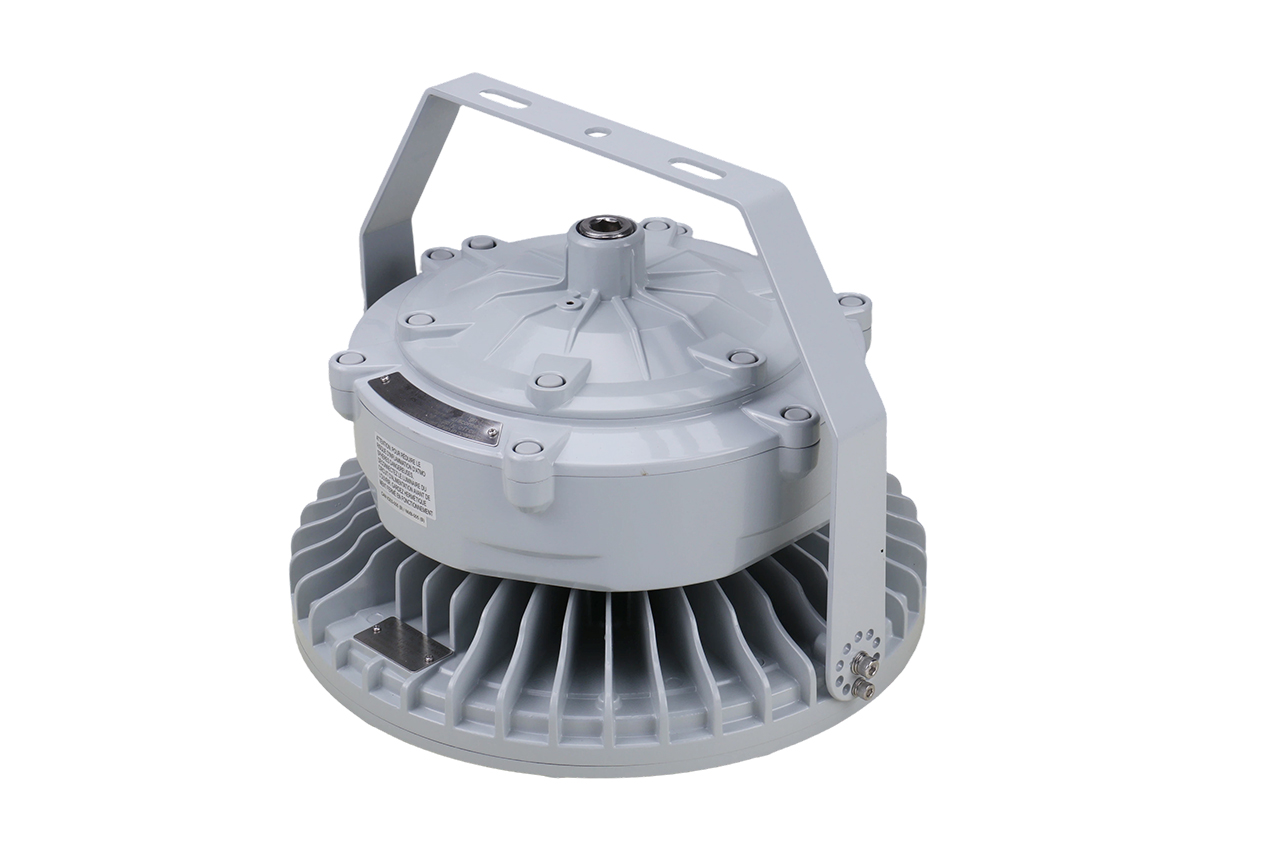

Round Explosion-Proof Fixture
150W l 5000K l 120-277V | 23834 lm
GTIN / UPC : 10845599002533
Code-barres : 845599002536
1 avis
Suitable for hazardous environments where flammable gases, vapours, and liquids may exist
Also suited for wet locations, marine environments, and high-vibration applications
Die-cast aluminum - Grey finish
IP66 driver with 10kV surge protection
C1, D2, (Groups A,B,C,D), UL844, UL1598, UL8750
Atex II2G Ex db IIC T6 Gb
Faceted reflectors in each LED chip for glare control and beam precision
Tempered glass lens allows for soft, uniform light
Complete with yoke mount
Certifications Listed:
cUL, IK09
CSC LED Warranty:
5 Year Warranty
Product Number:
EXPR-150W-50K-GR
Light Specifications
Beam Angle:
110
Colour Temperature:
5000K
CRI:
80+
Dimmable:
No
Efficacy:
130 LM/W
Initial Lumens:
23834 lm
Life (L70):
>50,000 hrs
Electrical Specifications
IP Rating:
IP66
Operating Temperature:
-40°C to 55°C
Power Factor:
0.99
THD:
<20%%
Voltage:
120-277V
Watts:
150W
Construction Specifications
Finish Colour:
Grey
Housing:
Aluminum
Logistics
Qty per Master Carton:
1
Master Carton Weight:
28.0 lbs
Master Carton Length:
16.0 in
Master Carton Width:
16.0 in
Master Carton Height:
14.0 in
Qty per Skid:
36
