JUSQU'À ÉPUISEMENT DES STOCKS
Power selectable (20W/30W/40W)
Colour selectable (3500K/4000K/5000K)
120-347V, 0-10V dimmable driver
Seismic clips included
Use switches to select power and colour

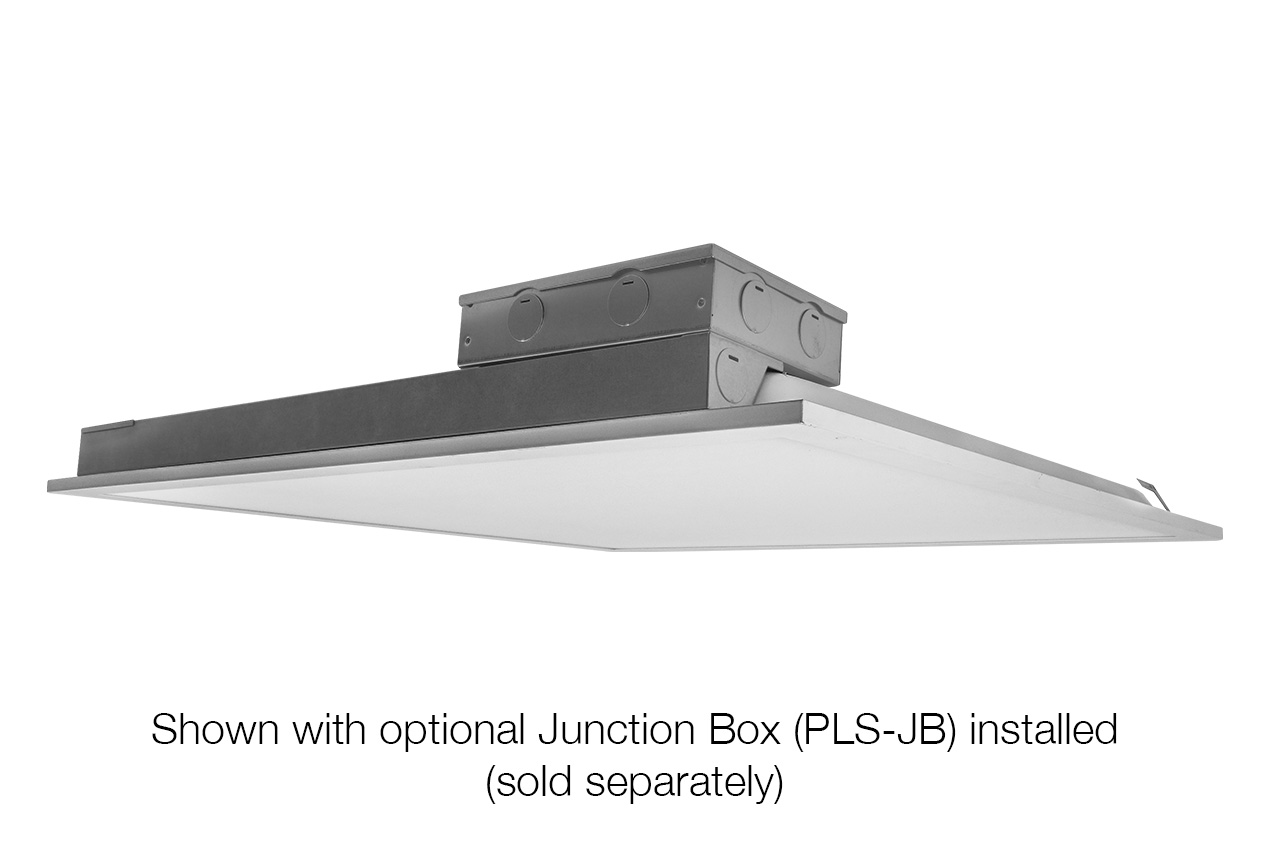

Junction box (PLS-JB) sold separately
Waffle stamping increases heat dissipation and driver life
Non-yellowing frosted lens
Less than 1.8 inches deep ideal for tight plenum areas
Certifications:
cETL, DLC
CSC DLC Number:
S-UHQD2I
Garantie CSC LED:
7 Year Warranty
Numéro de produit:
PLS22-40W-3P-3CCT-UD
Caractéristiques lumineuses
Angle du faisceau:
120
Température de couleur:
3500 K/4000 K/5000 K
IRC:
84
Dimmable:
0-10
Efficacité:
111 LM/W
Lumens initiaux:
4292 lm
Durée de vie (L70):
>54,000 hrs
Caractéristiques électriques
Amperage:
0.4 A
Indice IP:
IP 20
Température de fonctionnement:
-20°C to 40°C
Power Factor:
0.93
DHT:
<20%
Tension:
120-347V
Watts:
20W/30W/40W
Caractéristiques de construction
Finish:
Polyester Powder Coat
Couleur de finition:
White
Boîtier:
Aluminum Frame
Type de fixation:
Recessed Mount
Logistique
Poids unitaire:
3.86 lbs
Unit Length:
23.75 in
Unit Width:
1.67 in
Unit Height:
23.75 in
Qté par carton:
1
Qté par carton principal:
4
Poids du carton principal:
19.0 lbs
Longueur du carton principal:
24.7 in
Largeur du carton principal:
7.0 in
Hauteur du carton principal:
25.0 in
Qté par palette:
156
CUP:
845599040866
GTIN:
10845599040863
