JUSQU'À ÉPUISEMENT DES STOCKS
PLS24-50W-3P-3CCT-UD
4 avis
PLS Panel Light
2' x 4' | 30W/40W/50W | 3CCT | 120-347V | 3819-5656 lm
GTIN / UPC : 10845599040870
Code-barres : 845599040873
4 avis
Power selectable (30W/40W/50W)
Colour selectable (3500K/4000K/5000K)
120-347V, 0-10V dimmable driver
Seismic clips included
Use switches to select power and colour

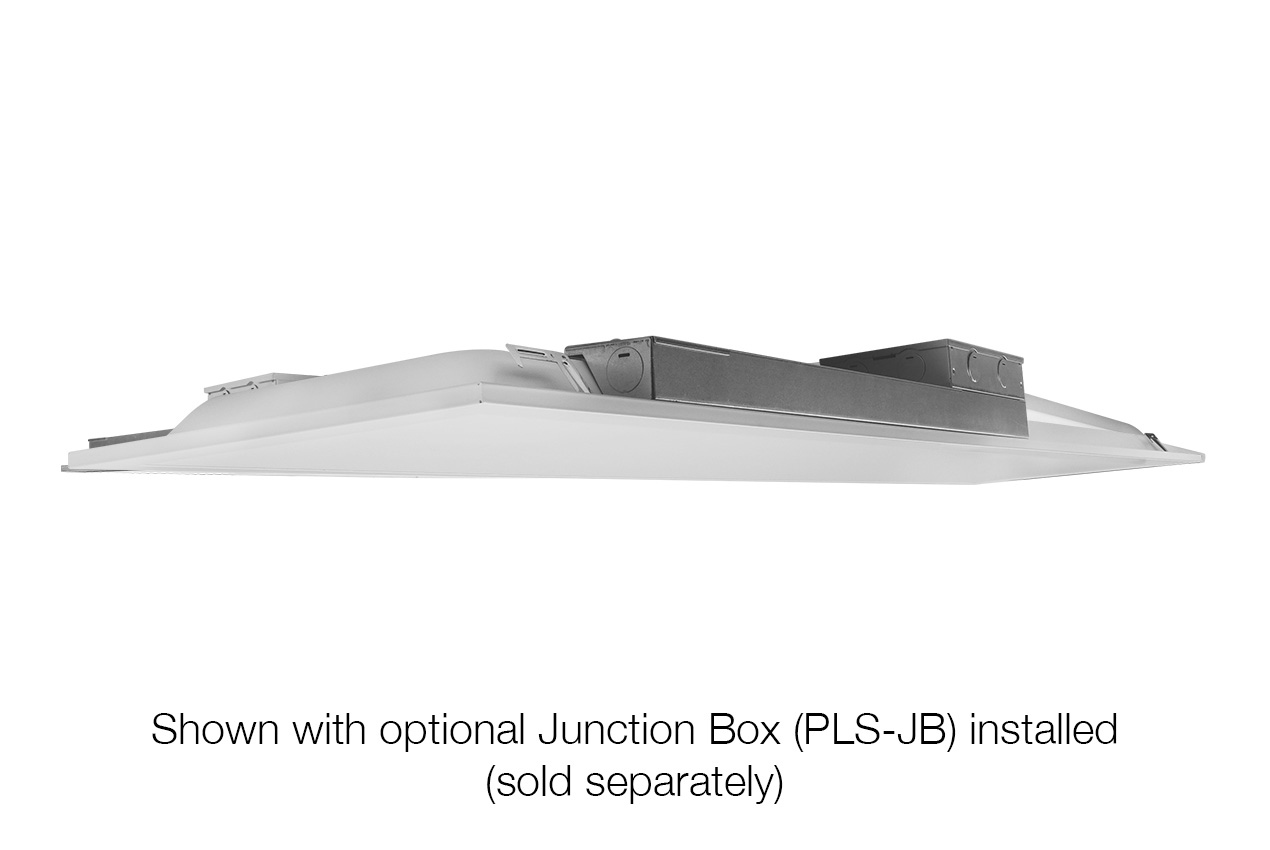

Junction box (PLS-JB) sold separately

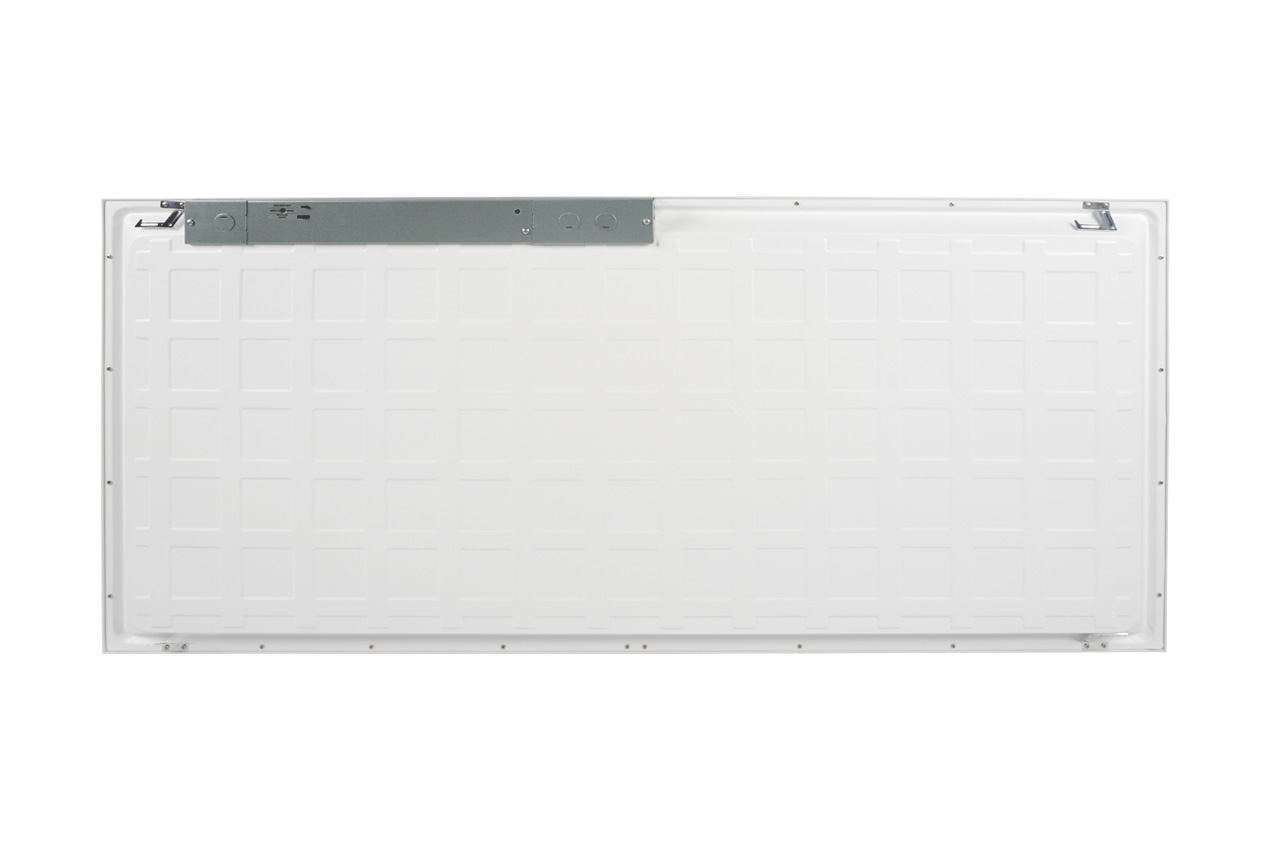

Waffle stamping increases heat dissipation and driver life
Non-yellowing frosted lens
Less than 1.8 inches deep ideal for tight plenum areas
Certifications Listed:
cETL, DLC
CSC DLC Number:
S-STR40A
CSC LED Warranty:
7 Year Warranty
Product Number:
PLS24-50W-3P-3CCT-UD
Light Specifications
Beam Angle:
120
Colour Temperature:
3500K/4000K/5000K
CRI:
82
Dimmable:
0-10
Efficacy:
110 LM/W
Initial Lumens:
5280 lm
Life (L70):
>54,000 hrs
Electrical Specifications
Amperage:
0.5 A
IP Rating:
IP20
Operating Temperature:
-20°C to 40°C
Power Factor:
>0.9
THD:
25%
Voltage:
120-347V
Watts:
30W/40W/50W
Construction Specifications
Finish:
Polyester Powder Coat
Finish Colour:
White
Housing:
Aluminum Frame
Mounting Type:
Recessed Mount
Logistics
Unit Weight:
7.39 lbs
Unit Length:
47.2 in
Unit Width:
1.67 in
Unit Height:
23.74 in
Qty per Carton:
1
Qty per Master Carton:
4
Master Carton Weight:
32.6 lbs
Master Carton Length:
48.7 in
Master Carton Width:
7.0 in
Master Carton Height:
25.0 in
Qty per Skid:
78
