PTA02-55W-3CCT-UD
8 avis

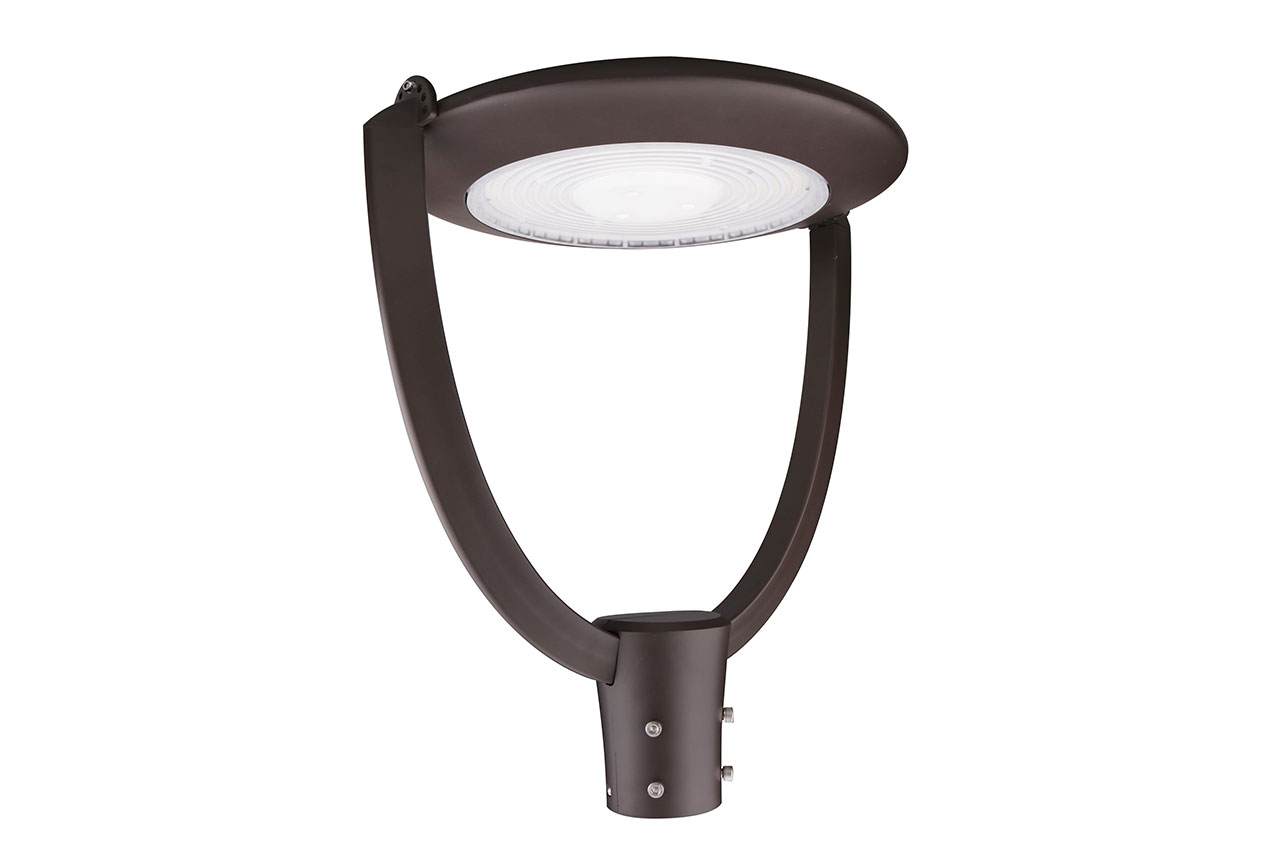

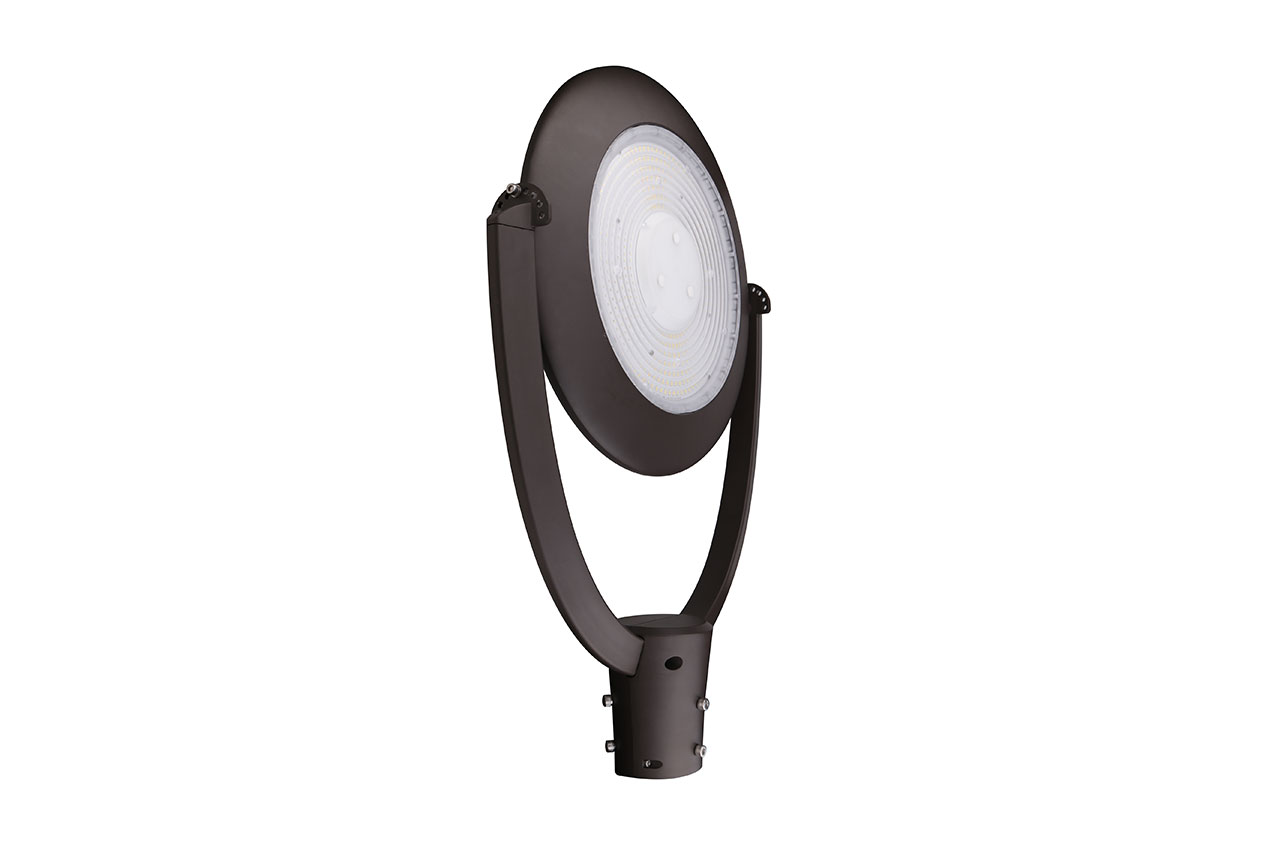

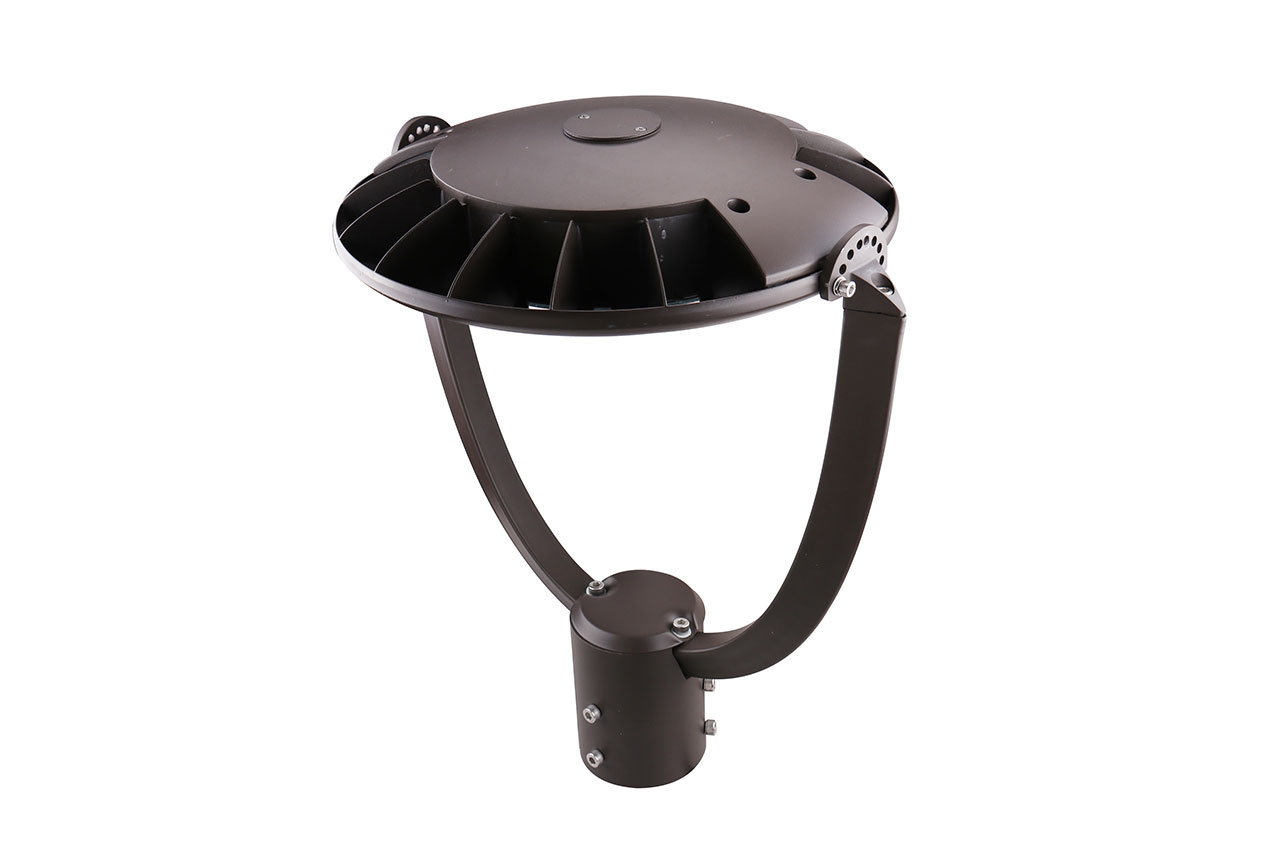

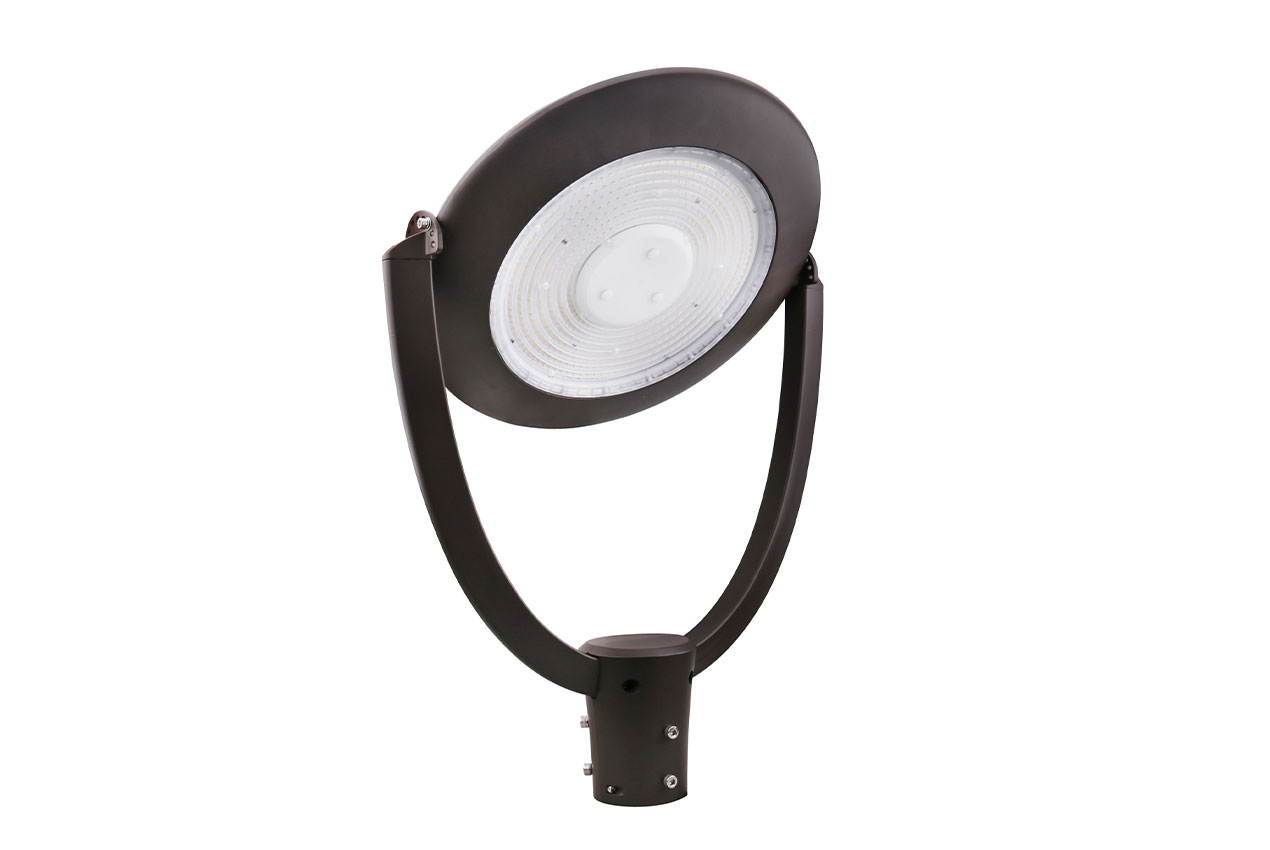

Pole Top Area Light
55W | 3CCT | 120-347V | 6892 lm
GTIN / UPC : 10845599012853
Code-barres : 845599012856
8 avis
Colour selectable (3000K / 4000K / 5000K)
Complete with Photocell Receptacle and Shorting Cap
0-10V dimmable
High-efficiency Optics with Type V distribution
Fits up to a 2 3/4'' pole
Tiltable
Polyester powder-coat finish
Instant start
Certifications Listed:
cUL, DLCPremium, IK08
CSC DLC Number:
S-JHB85F
CSC LED Warranty:
10 Year Warranty
Product Number:
PTA02-55W-3CCT-UD
Light Specifications
Beam Angle:
90°
Colour Temperature:
3000K/4000K/5000K
CRI:
80+
Dimmable:
0-10
Efficacy:
121.45 LM/W
Initial Lumens:
6892 lm
Life (L70):
>50,000 hrs
Electrical Specifications
Amperage:
0.6 A
IP Rating:
IP65
Operating Temperature:
-40°C to 50°C
Power Factor:
0.9
THD:
15%
Voltage:
120-347V
Watts:
55W
Construction Specifications
Finish:
Polyester Powder Coat
Finish Colour:
Bronze
Housing:
Die-Cast Aluminum
Power Cord Length:
23"
Logistics
Unit Weight:
10.12 lbs
Unit Length:
15.0 in
Unit Width:
17.9 in
Unit Height:
21.3 in
Qty per Master Carton:
1
Master Carton Weight:
12.5 lbs
Master Carton Length:
28.7 in
Master Carton Width:
20.3 in
Master Carton Height:
7.1 in
Qty per Skid:
36
