SSM-12R-24W-5CCT-WH
12" SSM Slim Surface
24W | 5CCT | 120V | 2000-2150 lm
GTIN / UPC : 10845599062964
Code-barres : 845599062967
5CCT (2700K/3000K/3500K/4000K/5000K)

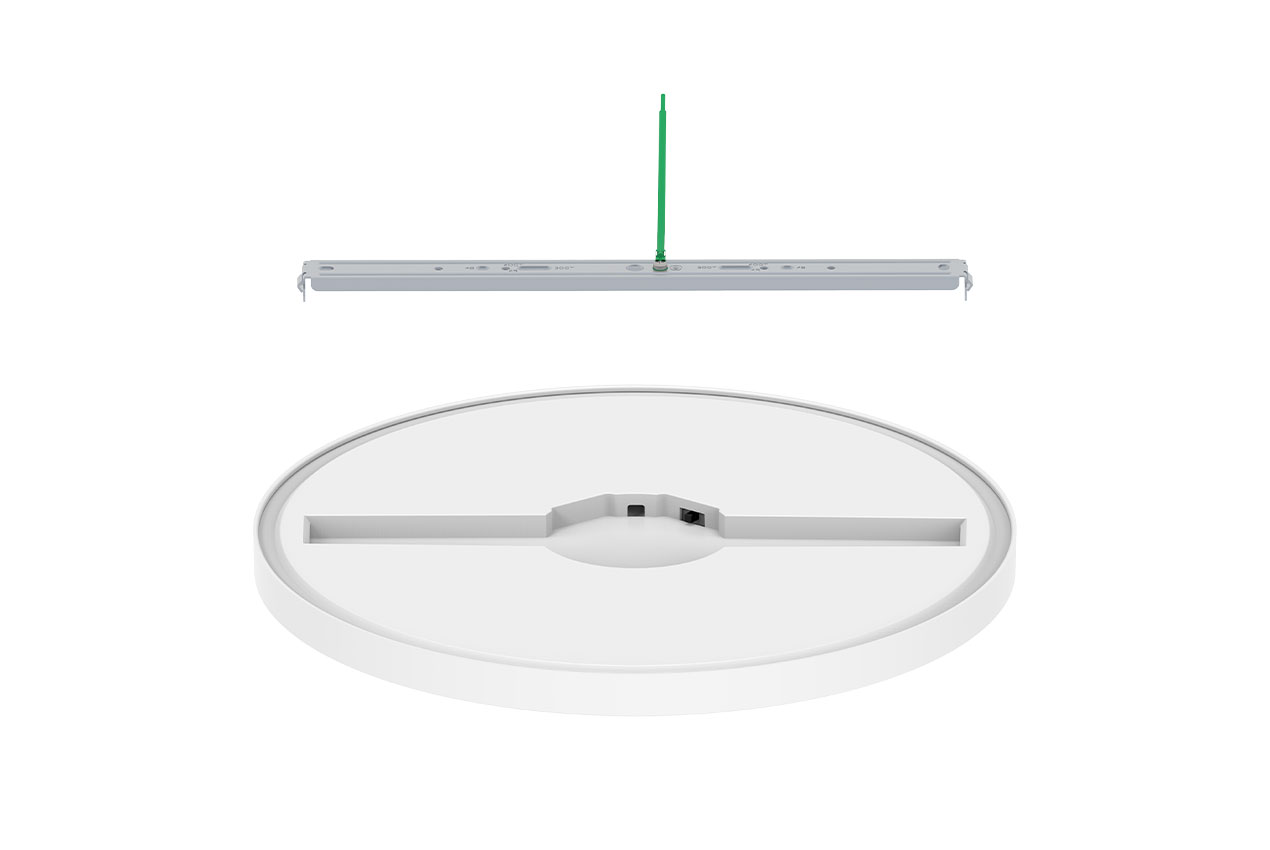

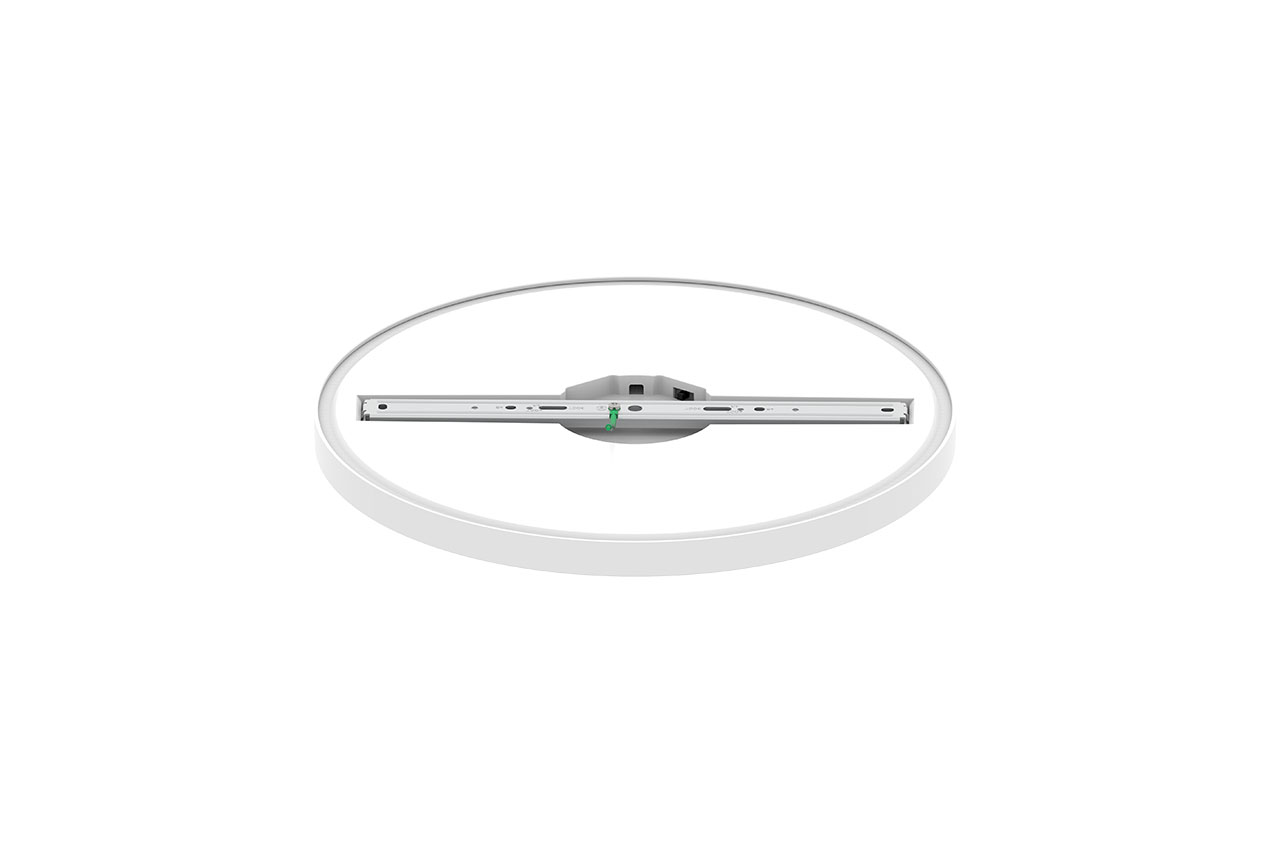

Low-profile, quick-snap mount design
ELV / TRIAC dimmable with 120V driver
Edge-lit optics that deliver smooth uniform illumination
Compatible with 3" and 4" junction boxes
Suitable for use in wet locations
White trim standard, brushed nickel & black trims sold separately
Certifications Listed:
cETL
CSC LED Warranty:
5 Year Warranty
Product Number:
SSM-12R-24W-5CCT-WH
Light Specifications
Beam Angle:
110°
Colour Temperature:
2700K/3000K/3500K/4000K/5000K
CRI:
>90
Dimmable:
ELV/TRIAC
Efficacy:
88 LM/W
Initial Lumens:
2000 lm
Life (L70):
>50,000 hrs
Electrical Specifications
Amperage:
0.2 A
IP Rating:
IP44
Operating Temperature:
-25°C to 40°C
Power Factor:
>0.9
THD:
60%
Voltage:
120V
Watts:
24W
Construction Specifications
Finish:
Plastic
Finish Colour:
White
Housing:
Polycarbonate
Mounting Type:
Surface Mount
Logistics
Unit Weight:
1.48 lbs
Unit Length:
12.24 in
Unit Width:
12.24 in
Unit Height:
0.74 in
Qty per Carton:
1
Carton Weight:
1.76 lbs
Carton Length:
13.58 in
Carton Width:
12.40 in
Carton Height:
0.98 in
Qty per Master Carton:
12
Master Carton Weight:
22.9 lbs
Master Carton Length:
13.8 in
Master Carton Width:
12.9 in
Master Carton Height:
14.4 in
Qty per Skid:
648
