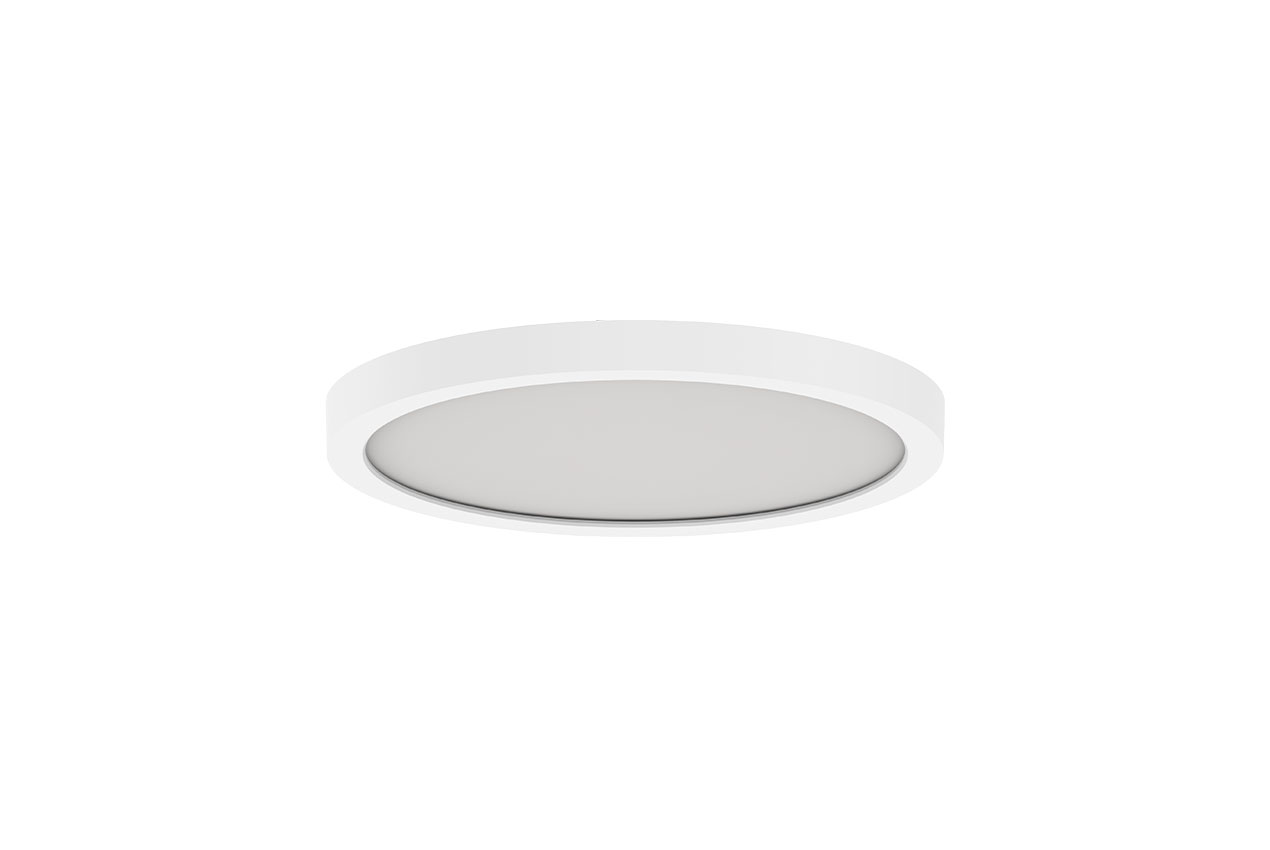

SSM-9R-18W-5CCT-WH
9" SSM Slim Surface
18W | 5CCT | 120V | 1500-1600 lm
GTIN / UPC : 10845599062957
Code-barres : 845599062950
5CCT (2700K/3000K/3500K/4000K/5000K)

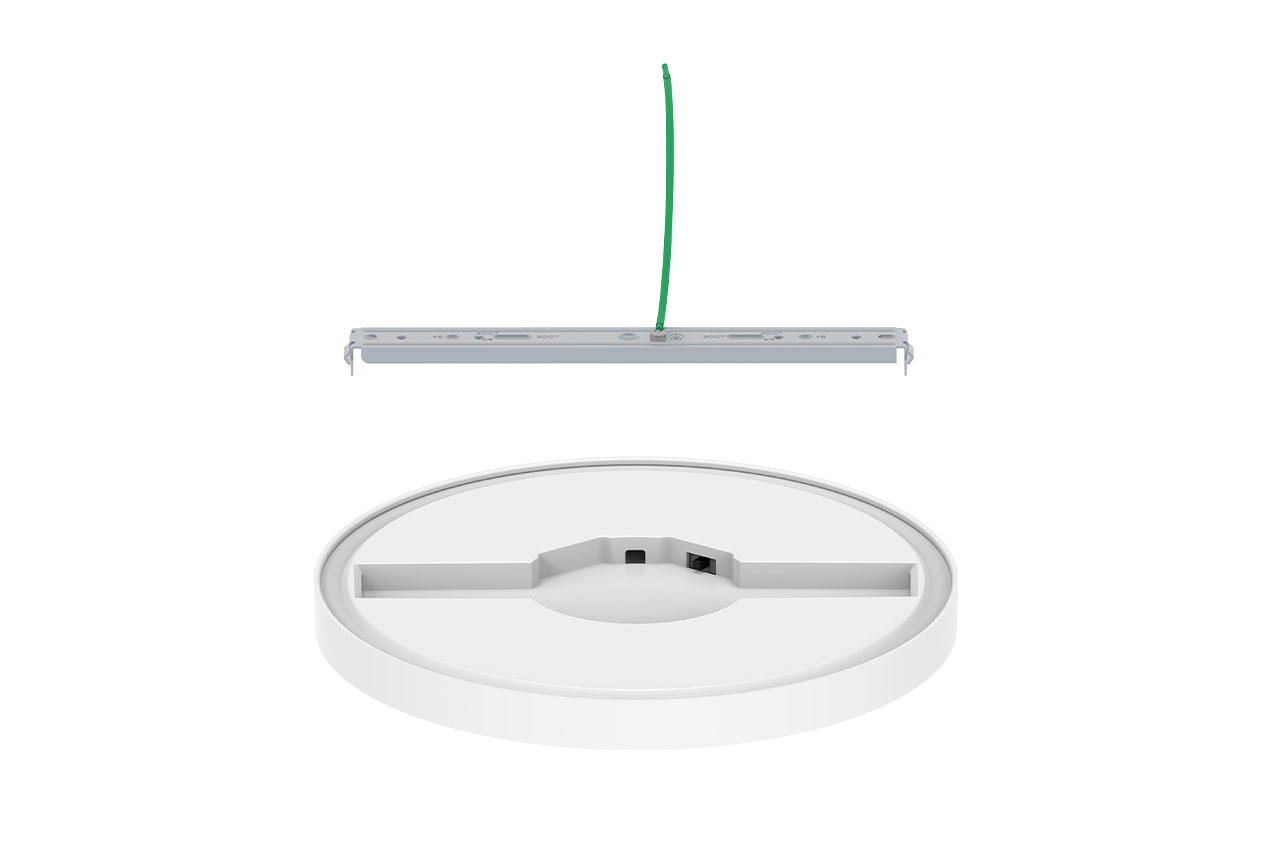

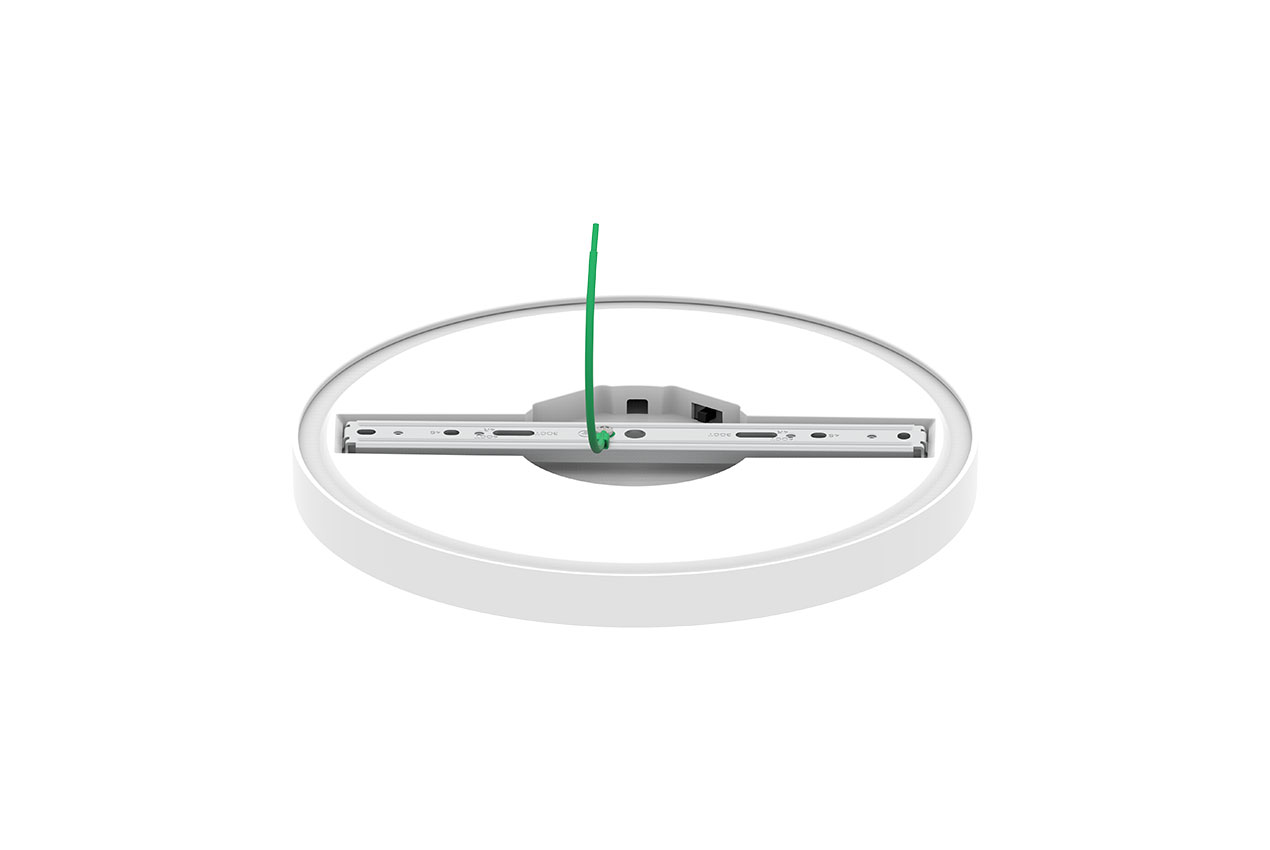

Low-profile, quick-snap mount design
ELV / TRIAC dimmable with 120V driver
Edge-lit optics that deliver smooth uniform illumination
Compatible with 3" and 4" junction boxes
Suitable for use in wet locations
White trim standard, brushed nickel & black trims sold separately
Certifications Listed:
cETL, EnergyStar
CSC LED Warranty:
5 Year Warranty
Product Number:
SSM-9R-18W-5CCT-WH
Light Specifications
Beam Angle:
110°
Colour Temperature:
2700K/3000K/3500K/4000K/5000K
CRI:
>90
Dimmable:
ELV/TRIAC
Efficacy:
90 LM/W
Initial Lumens:
1500 lm
Life (L70):
>50,000 hrs
Electrical Specifications
Amperage:
0.2 A
IP Rating:
IP44
Operating Temperature:
-25°C to 40°C
Power Factor:
>0.9
THD:
60%
Voltage:
120V
Watts:
18W
Construction Specifications
Finish:
Plastic
Finish Colour:
White
Housing:
Polycarbonate
Mounting Type:
Surface Mount
Logistics
Unit Weight:
0.85 lbs
Unit Length:
8.86 in
Unit Width:
8.86 in
Unit Height:
0.74 in
Qty per Carton:
1
Carton Weight:
1.02 lbs
Carton Length:
10.24 in
Carton Width:
9.05 in
Carton Height:
0.98 in
Qty per Master Carton:
18
Master Carton Weight:
22.4 lbs
Master Carton Length:
18.8 in
Master Carton Width:
10.4 in
Master Carton Height:
11.0 in
Qty per Skid:
1152
