5CCT (2700K/3000K/3500K/4000K/5000K)

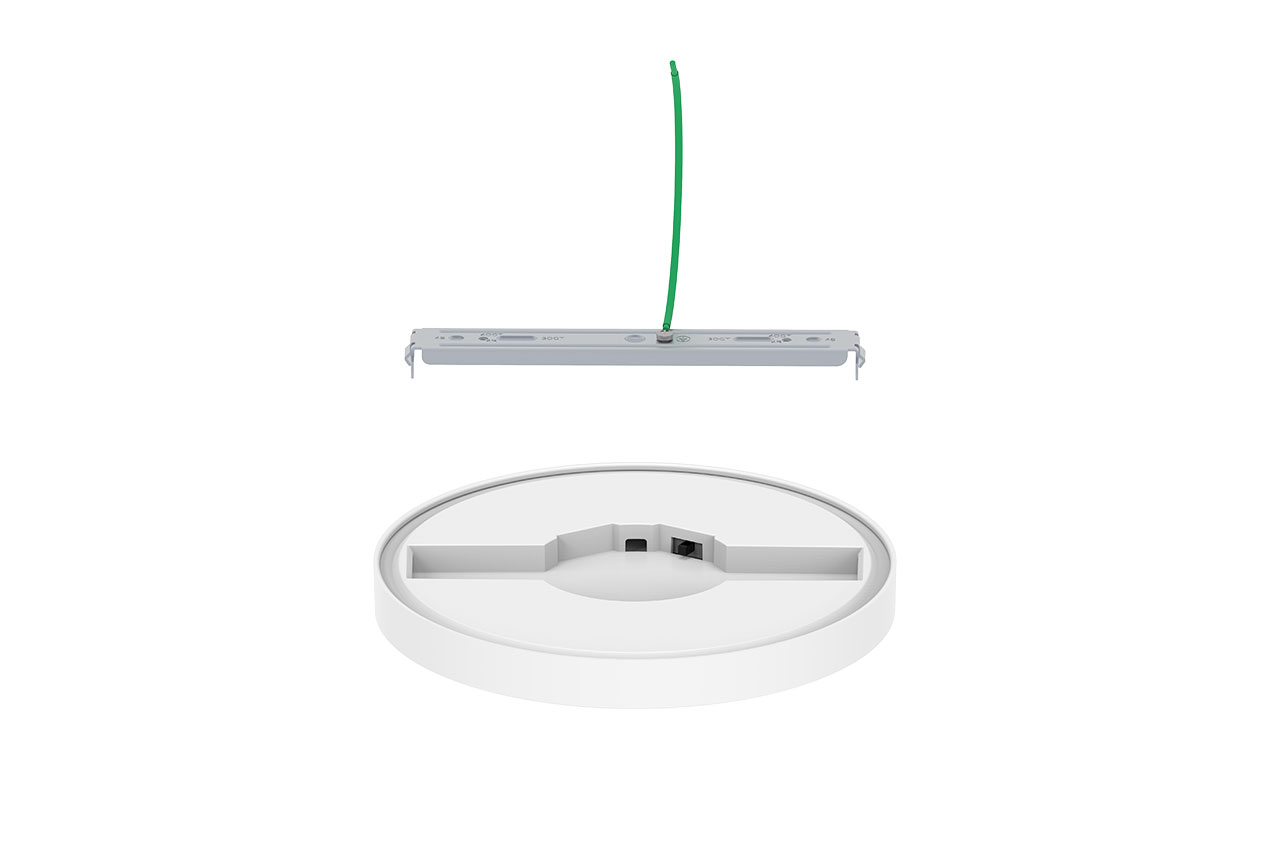

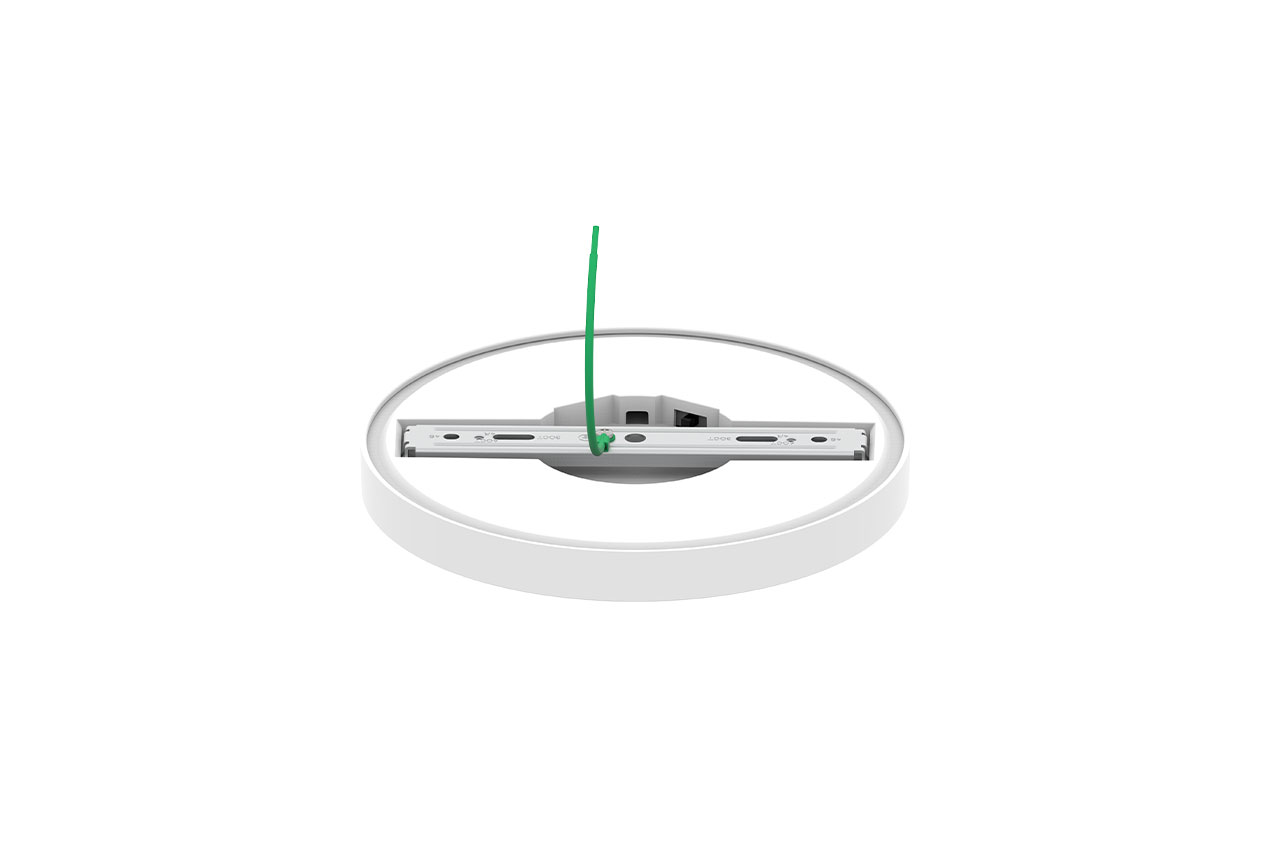

Low-profile, quick-snap mount design
ELV / TRIAC dimmable with 120V driver
Edge-lit optics that deliver smooth uniform illumination
Compatible with 3" and 4" junction boxes
Suitable for use in wet locations
White trim standard, brushed nickel & black trims sold separately
Certifications:
cETL, EnergyStar
Garantie CSC LED:
5 Year Warranty
Numéro de produit:
SSM-7R-15W-5CCT-WH
Caractéristiques lumineuses
Angle du faisceau:
110°
Température de couleur:
2700 K/3000 K/3500 K/4000 K/5000 K
IRC:
>90
Dimmable:
ELV/TRIAC
Efficacité:
85 LM/W
Lumens initiaux:
1100 lm
Durée de vie (L70):
>50,000 hrs
Caractéristiques électriques
Amperage:
0.1 A
Indice IP:
IP 44
Température de fonctionnement:
-25°C to 40°C
Power Factor:
>0.9
DHT:
60%
Tension:
120V
Watts:
15W
Caractéristiques de construction
Finish:
Plastic
Couleur de finition:
White
Boîtier:
Polycarbonate
Type de fixation:
Surface Mount
Logistique
Poids unitaire:
0.58 lbs
Unit Length:
7.09 in
Unit Width:
7.09 in
Unit Height:
0.73 in
Qté par carton:
1
Carton Weight:
0.70 lbs
Carton Length:
8.46 in
Carton Width:
7.28 in
Carton Height:
0.98 in
Qté par carton principal:
24
Poids du carton principal:
20.6 lbs
Longueur du carton principal:
15.3 in
Largeur du carton principal:
13.1 in
Hauteur du carton principal:
9.3 in
Qté par palette:
1296
CUP:
845599062943
GTIN:
10845599062940
