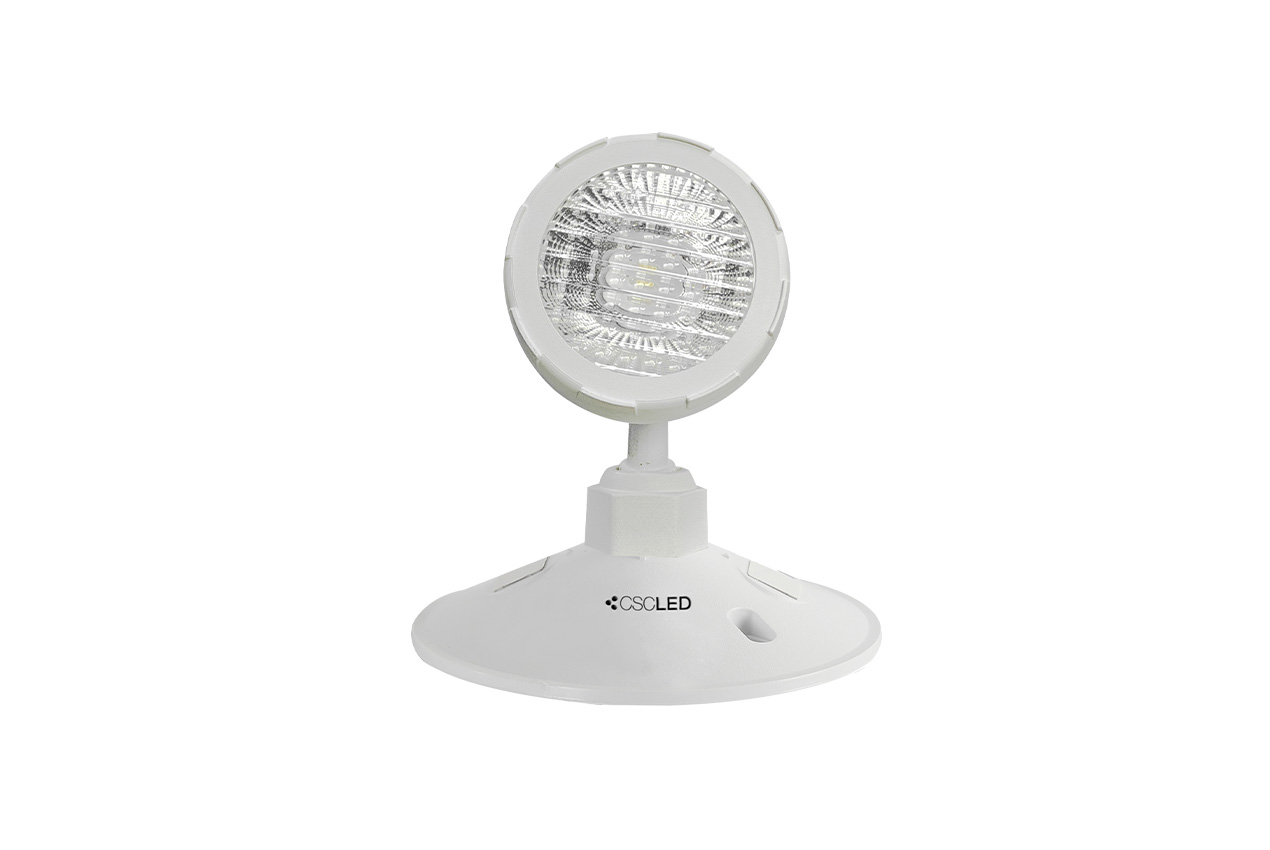

EML-RH-P-DC-7W-1H
Remote Head
1 x 7W Head | 6-24VDC
GTIN / UPC : 10845599062612
Code-barres : 845599062615
Designed to operate from the power and control circuitry of emergency lighting battery units and DC power back-up systems
1 x 7W adjustable swivel lamp head
Includes standard canopy allowing for mounting to electrical junction boxes
Robust thermoplastic housing
Certifications Listed:
CSA
CSC LED Warranty:
5 Year Warranty
Product Number:
EML-RH-P-DC-7W-1H
Light Specifications
Initial Lumens:
410 lm
Electrical Specifications
Amperage:
1.3 A
IP Rating:
IP20
Operating Temperature:
5°C to 30°C
Voltage:
6-24V
Construction Specifications
Finish Colour:
White
Housing:
Thermoplastic
Mounting Type:
Wall Mount
Lamp Head Specifications
Number of Lamp Heads:
1
Lamp Head Watts:
7 W
Lamp Input Voltage:
6-24 V
Lamp Head Material:
Thermoplastic
Logistics
Unit Weight:
0.37 lbs
Unit Length:
5.7 in
Unit Width:
5.0 in
Unit Height:
5.0 in
Qty per Carton:
1
Carton Weight:
0.71 lbs
Carton Length:
5.5 in
Carton Width:
5.3 in
Carton Height:
5.5 in
Qty per Master Carton:
20
Master Carton Weight:
15.2 lbs
Master Carton Length:
28.4 in
Master Carton Width:
11.2 in
Master Carton Height:
11.8 in
Qty per Skid:
320
