Power selectable 200W/250W/300W
3CCT Selectable 3000K/4000K/5000K
120-347V universal driver with 0-10V dimming
Mounting sold separately and required for use
3 distribution types per luminaire 5H5V/6H6V/7H6V
Built-in Photocell (switch off to disable)
IK07 and IP65 rated
Certifications:
cUL, DLCPremium, IK07
CSC DLC Number:
S-FB5YXZ
Garantie CSC LED:
10 Year Warranty
Numéro de produit:
FLF-300W-3P-3CCT-3B-UD-BZ
Caractéristiques lumineuses
Température de couleur:
3000 K/4000 K/5000 K
IRC:
80+
Dimmable:
0-10
Efficacité:
148 LM/W
Lumens initiaux:
44299 lm
Durée de vie (L70):
>50,000 hrs
Caractéristiques électriques
Amperage:
3.0 A
Indice IP:
IP 65
Température de fonctionnement:
-40°C to 50°C
Power Factor:
>0.9
DHT:
<20%
Tension:
120-347V
Watts:
200W/250W/300W
Caractéristiques de construction
Finish:
Polyester Powder Coat

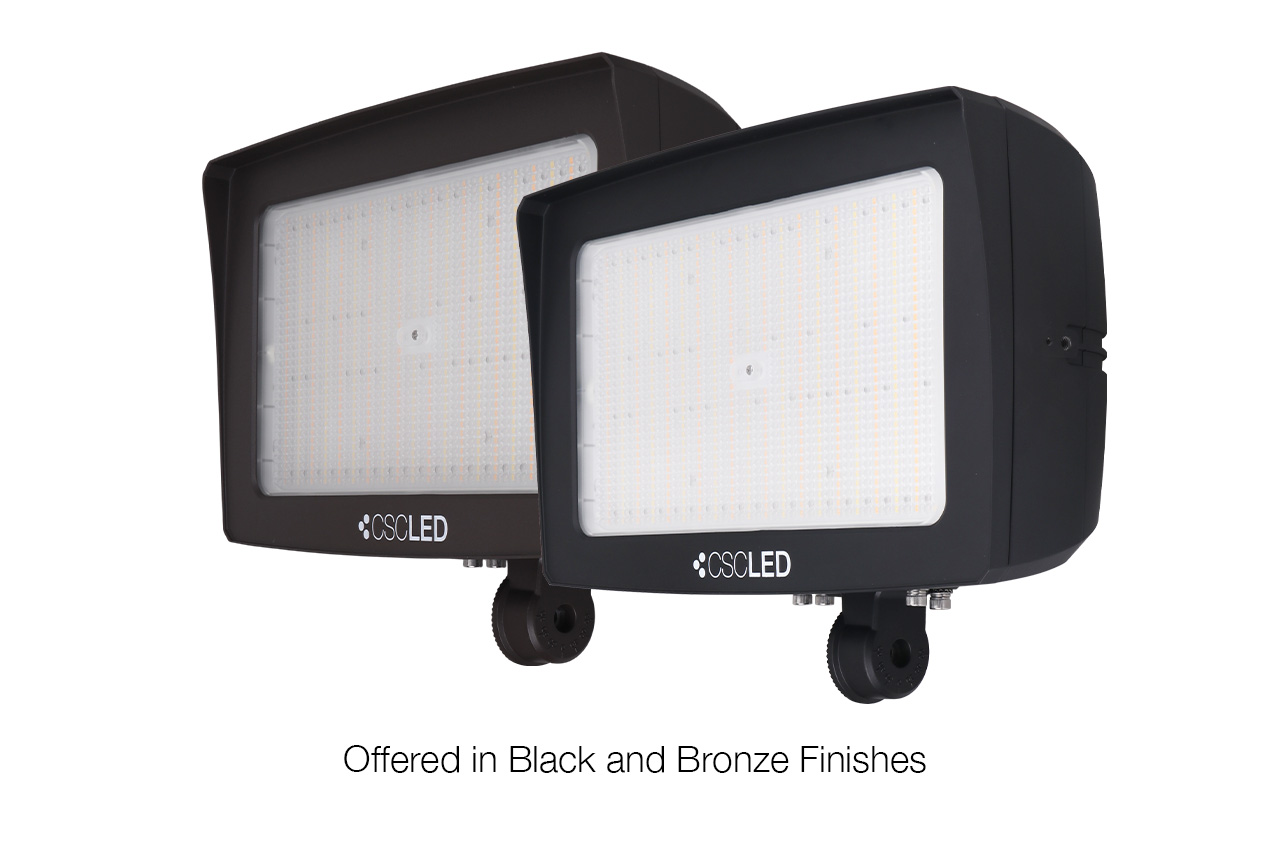

Couleur de finition:
Bronze
Boîtier:
Die-Cast Aluminum
Power Cord Length:
23.62 "
Logistique
Poids unitaire:
16.98 lbs
Unit Length:
14.83 in
Unit Width:
13.46 in
Unit Height:
6.79 in
Qté par carton:
1
Carton Weight:
21.16 lbs
Carton Length:
19.6 in
Carton Width:
16.65 in
Carton Height:
9.65 in
Qté par palette:
50
CUP:
845599013051
GTIN:
10845599013058
