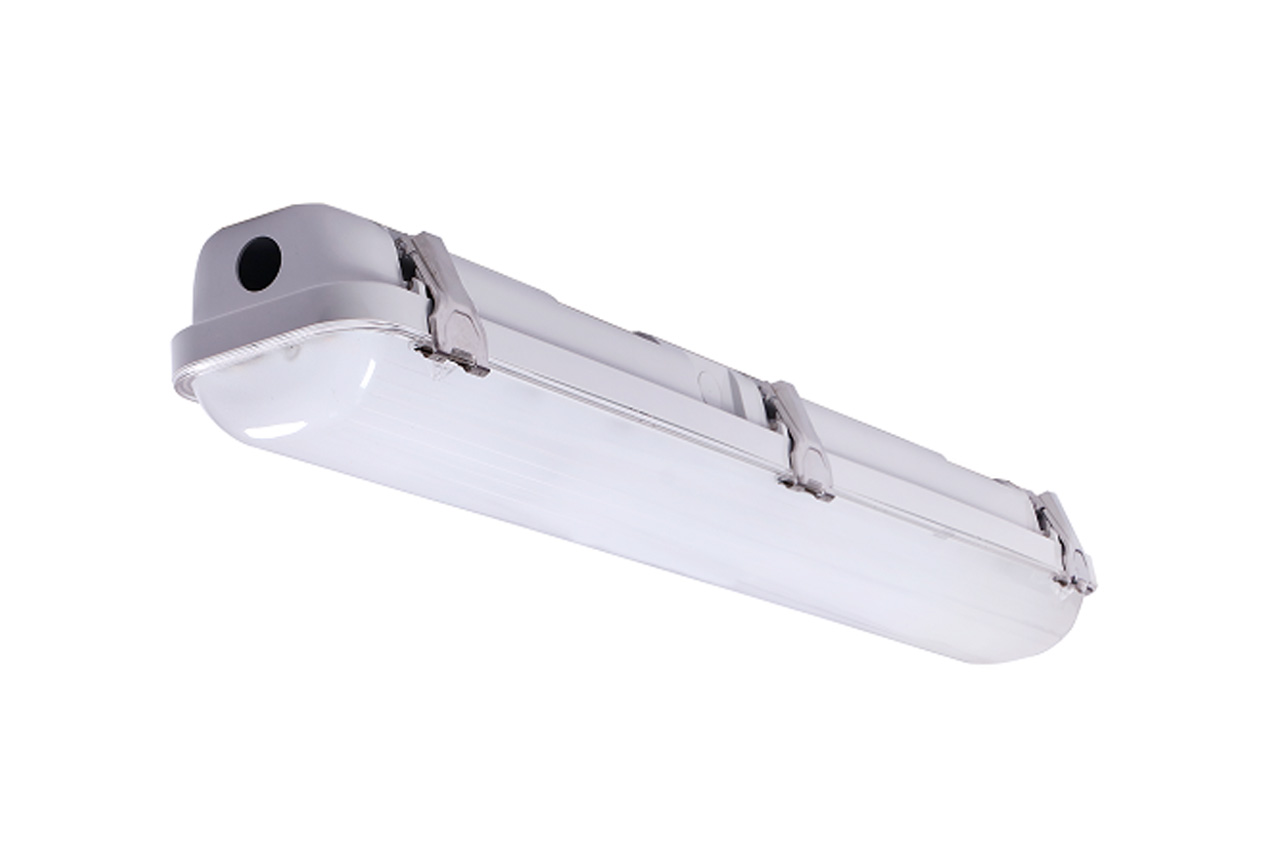

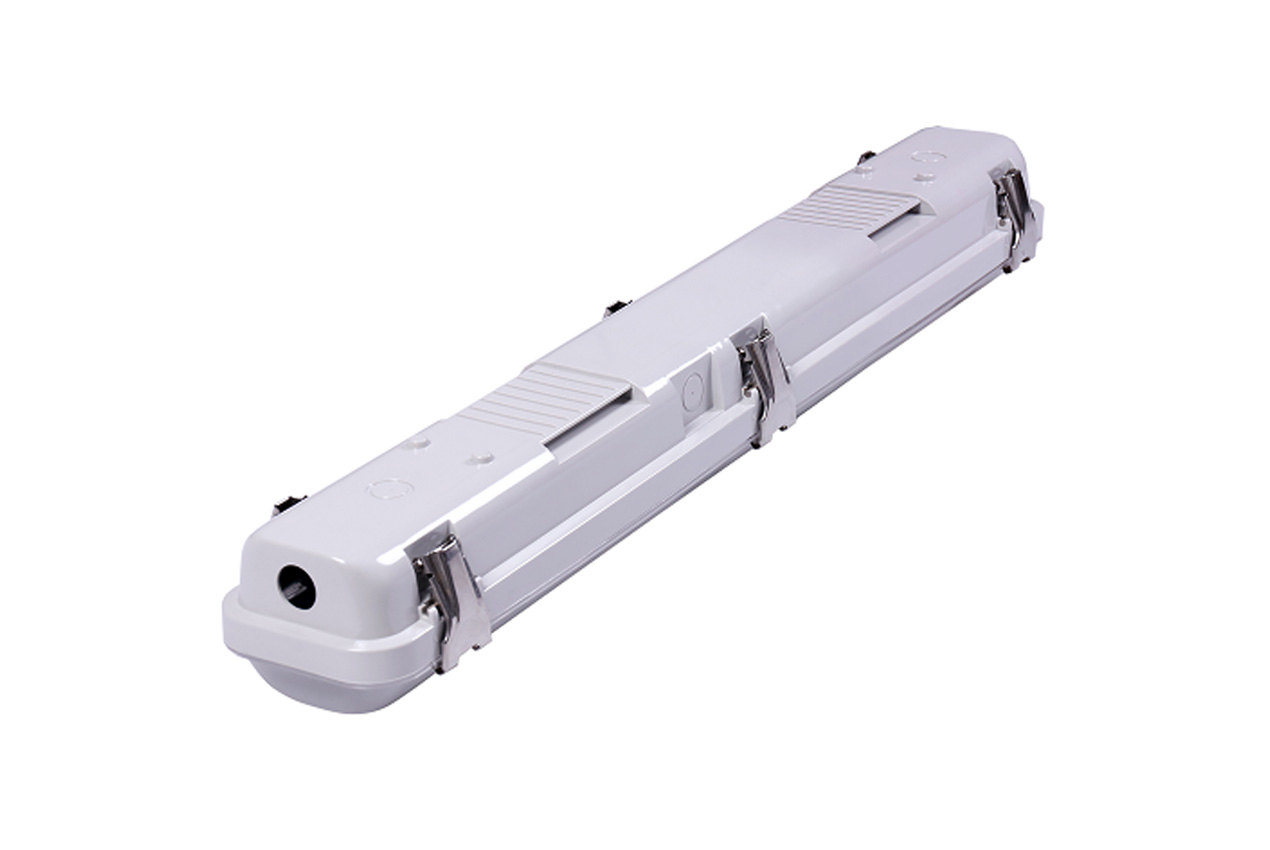

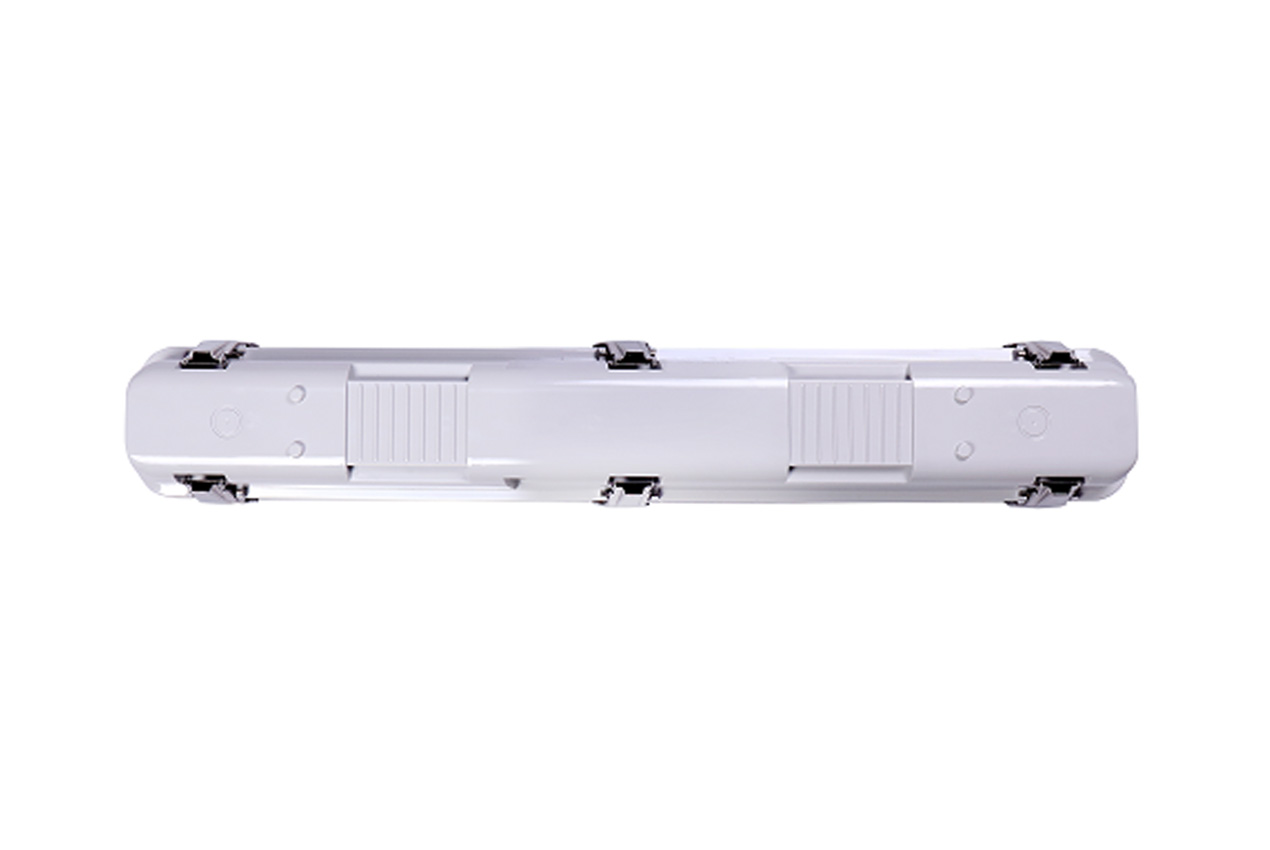

VT2-25W-3P-3CCT-UD
12 avis
NEMA 4X Vapour Tight
15W/20W/25W | 3CCT | 120-347V | 2283-3517 lm
GTIN / UPC : 10845599020544
Code-barres : 845599020547
12 avis
2ft length
One piece gear tray for quick access to driver and accessories
Stainless steel spring clips
Polycarbonate low glare lens
1/2'' NPT entry
Power selectable (15W / 20W / 25W)
Colour selectable (3500K / 4000K / 5000K)
NOTE: If using with motion sensor, modifications and installation should be done by CSC LED prior to shipping.
Certifications Listed:
cETL, DLCPremium, IK10, NEMA4X, NSF
CSC DLC Number:
S-8DN5T3, S-R4CFLO
CSC LED Warranty:
5 Year Warranty
Product Number:
VT2-25W-3P-3CCT-UD
Light Specifications
Beam Angle:
110
Colour Temperature:
3500K/4000K/5000K
CRI:
84
Dimmable:
0-10
Efficacy:
130 LM/W
Initial Lumens:
3250 lm
Life (L70):
>50,000 hrs
Electrical Specifications
Amperage:
0.5 A
IP Rating:
IP66
Operating Temperature:
-40°C to 40°C
Power Factor:
0.94
THD:
10.8%
Voltage:
120-347V
Watts:
15W/20W/25W
Construction Specifications
Base:
NA
Finish:
NA
Finish Colour:
White/Grey
Housing:
Polycarbonate
Mounting Type:
Surface or Pendant
Logistics
Unit Weight:
2.204 lbs
Unit Length:
25.6 in
Unit Width:
3.3 in
Unit Height:
4.1 in
Qty per Carton:
1
Qty per Master Carton:
4
Master Carton Weight:
3.3 lbs
Master Carton Length:
25.8 in
Master Carton Width:
3.9 in
Master Carton Height:
4.4 in
Qty per Skid:
320
VT2-25W-3P-3CCT-UD
12 avis
NEMA 4X Vapour Tight
15W/20W/25W | 3CCT | 120-347V | 2283-3517 lm
GTIN / UPC : 10845599020544
Code-barres : 845599020547
12 avis
