VT4-35W-3P-3CCT-UD
12 avis
NEMA 4X Vapour Tight
20W/28W/35W | 3CCT | 120-347V | 2747-4977 lm
GTIN / UPC : 10845599020537
Code-barres : 845599020530
12 avis
4ft length

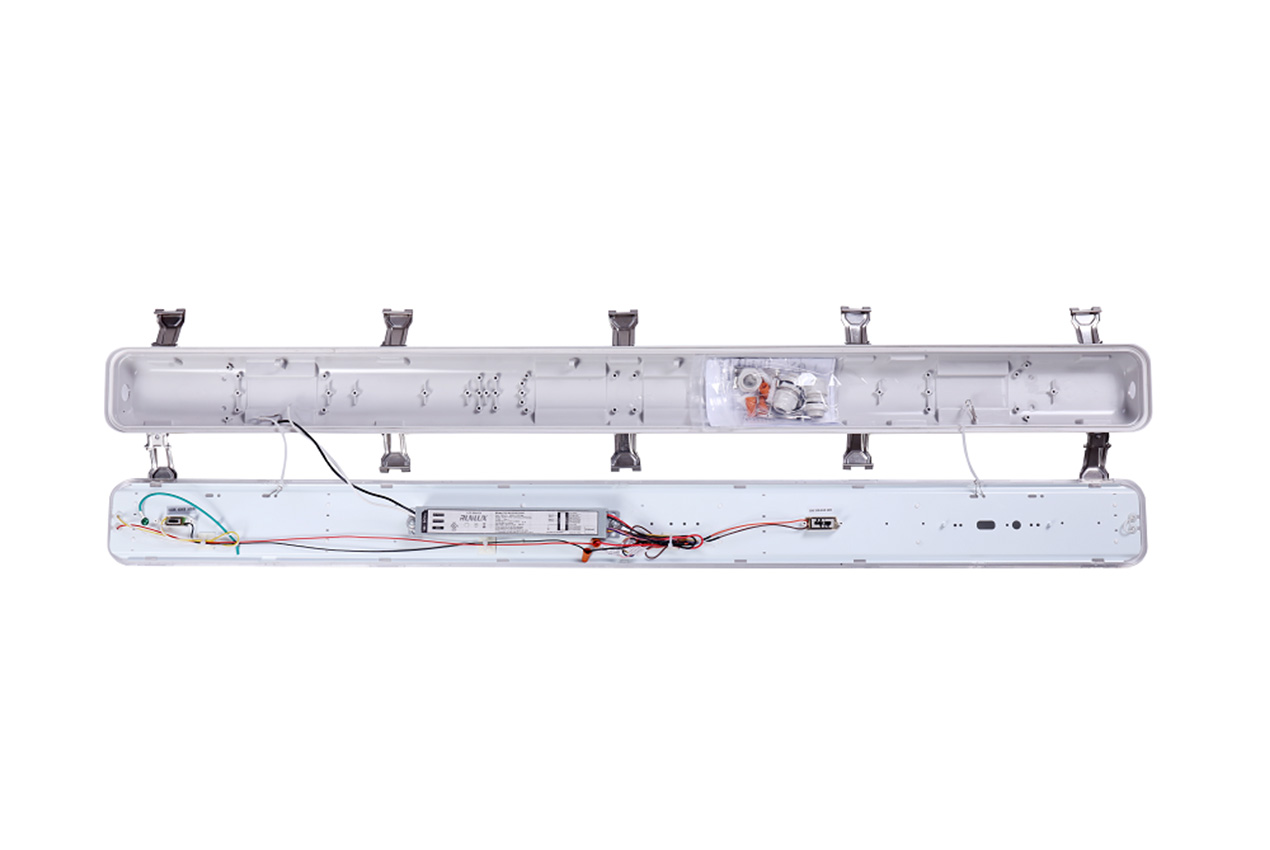

One piece gear tray for quick access to driver and accessories
Stainless steel spring clips
Polycarbonate low glare lens
1/2'' NPT entry
Power selectable (20W / 28W / 35W)
Colour selectable (3500K / 4000K / 5000K)
Certifications Listed:
cETL, DLCPremium, IK10, NEMA4X, NSF
CSC DLC Number:
S-VKND8O, S-AR3ION
CSC LED Warranty:
5 Year Warranty
Product Number:
VT4-35W-3P-3CCT-UD
Light Specifications
Colour Temperature:
3500K/4000K/5000K
CRI:
84
Dimmable:
0-10
Efficacy:
130 LM/W
Initial Lumens:
4550 lm
Life (L70):
>50,000 hrs
Electrical Specifications
Amperage:
0.5 A
IP Rating:
IP66
Operating Temperature:
-40°C to 40°C
Power Factor:
0.93
THD:
15.1%
Voltage:
120-347V
Watts:
20W/28W/35W
Construction Specifications
Finish Colour:
White/Grey
Housing:
Polycarbonate
Mounting Type:
Surface or Pendant
Logistics
Unit Weight:
4.9 lbs
Unit Length:
46.7 in
Unit Width:
4.2 in
Unit Height:
3.3 in
Qty per Carton:
1
Qty per Master Carton:
4
Master Carton Weight:
5.6 lbs
Master Carton Length:
47.0 in
Master Carton Width:
4.7 in
Master Carton Height:
3.6 in
Qty per Skid:
144
