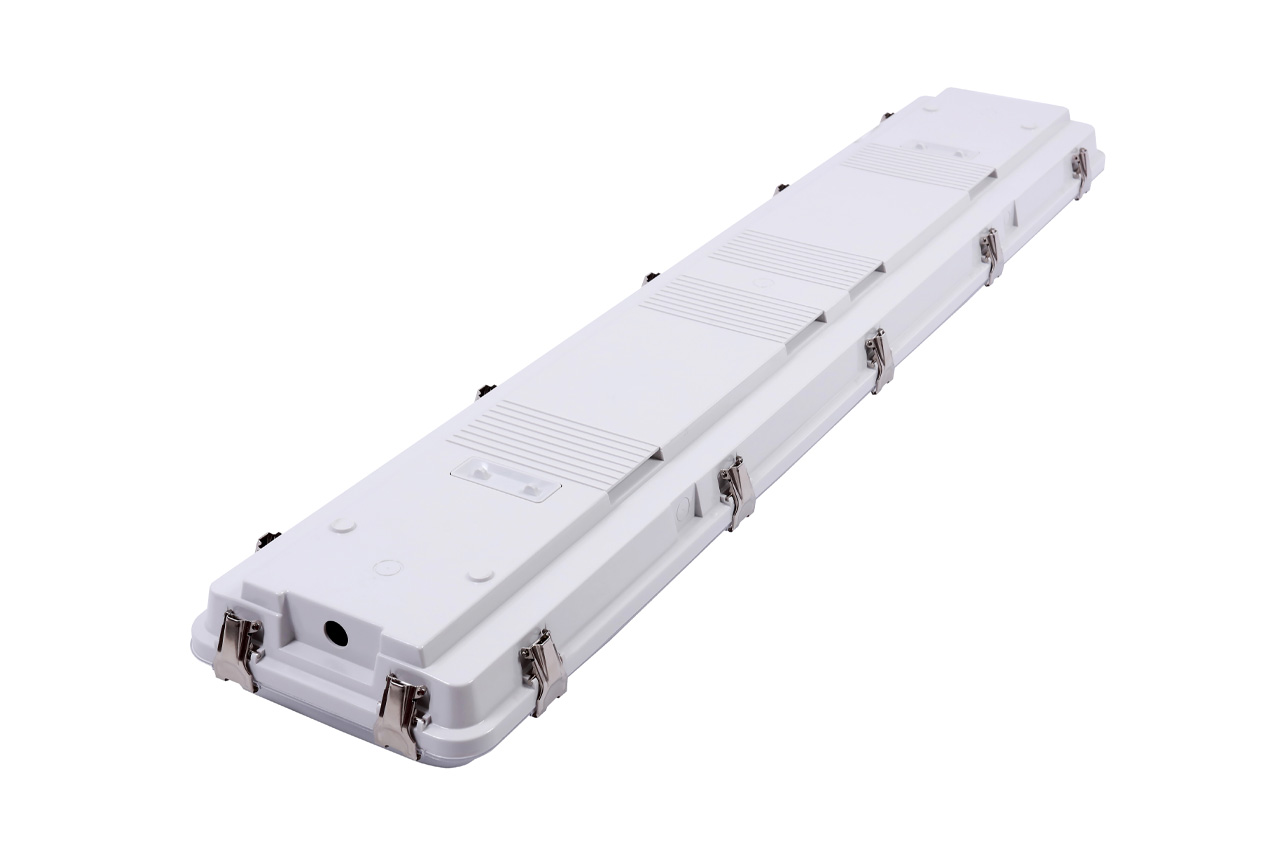

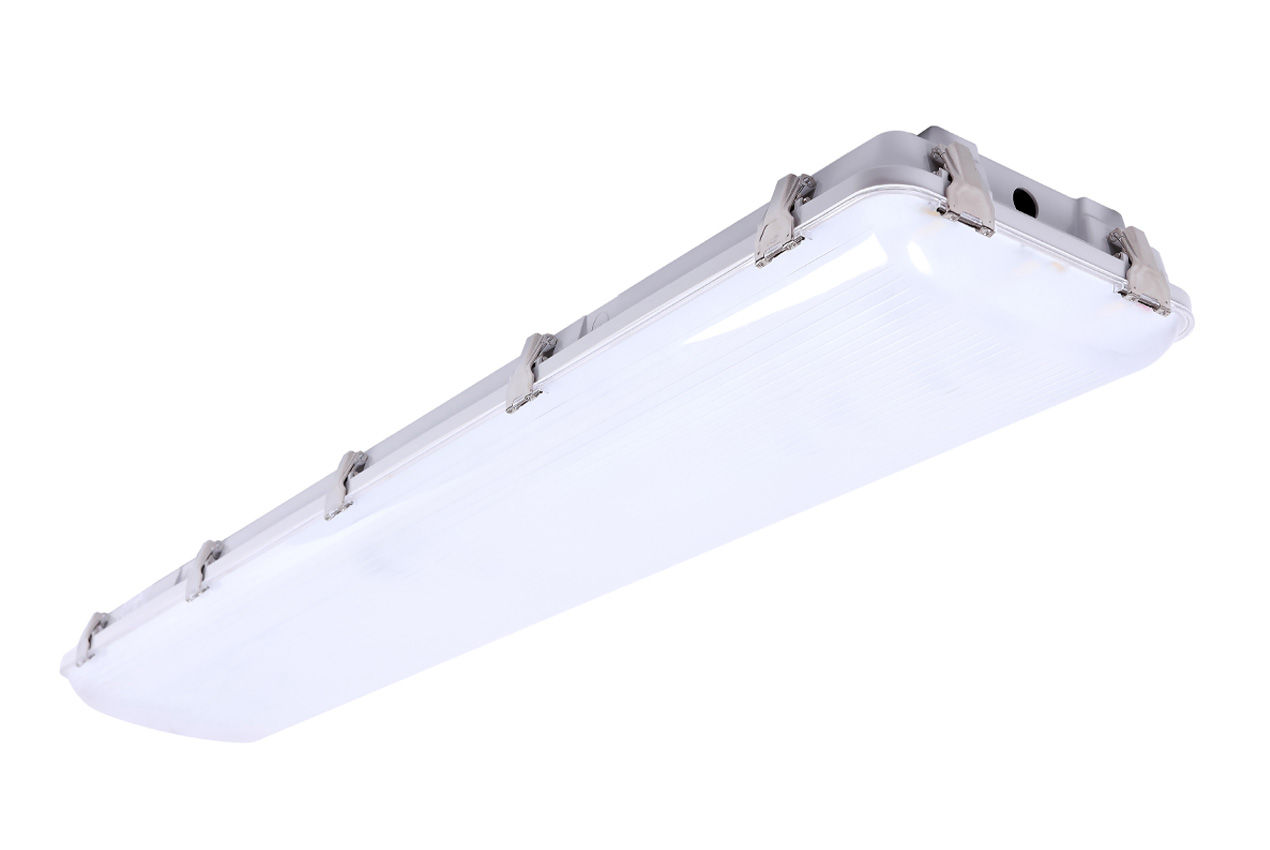

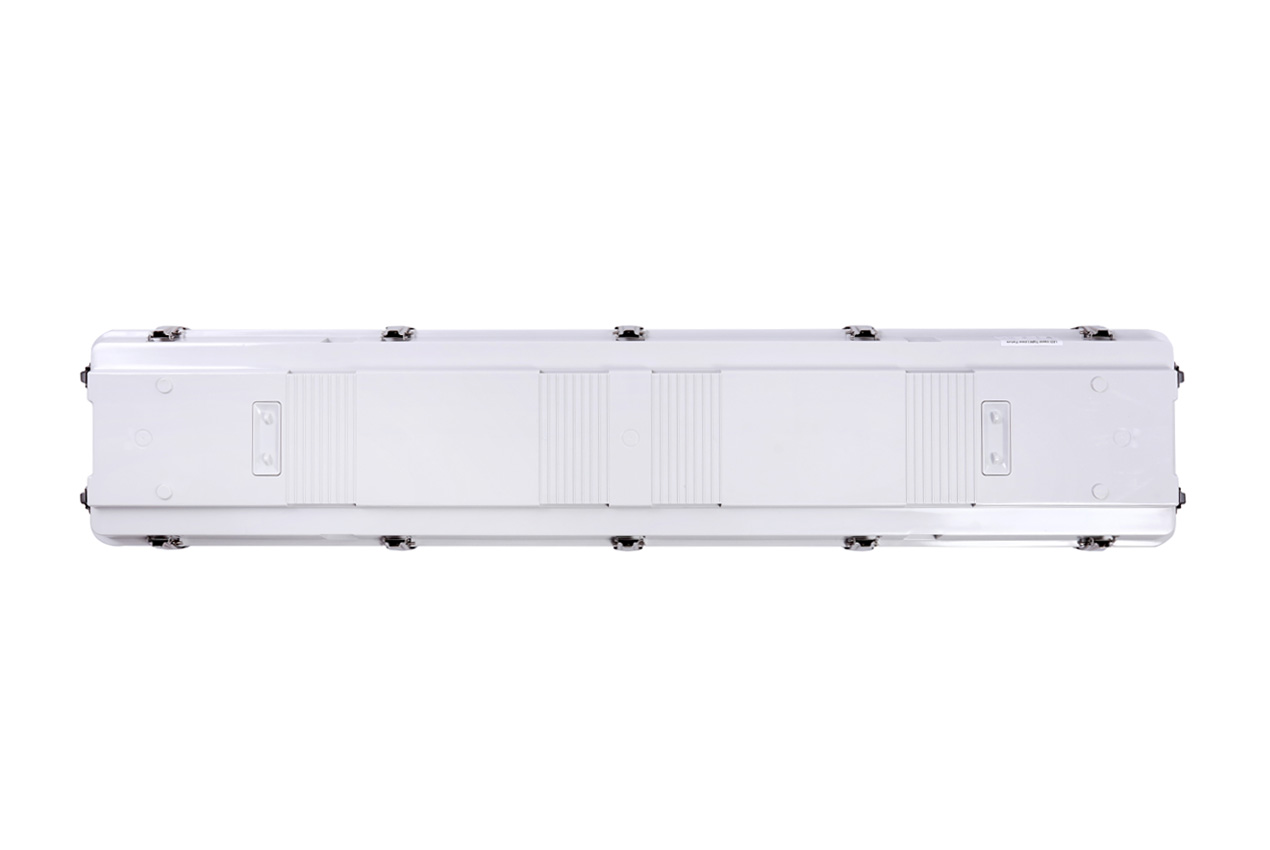

VT4-200W-3P-3CCT-UD
12 avis
NEMA 4X Vapour Tight
150W/175W/200W | 3CCT | 120-347V | 21892-30950 lm
GTIN / UPC : 10845599020582
Code-barres : 845599020585
12 avis
4ft length

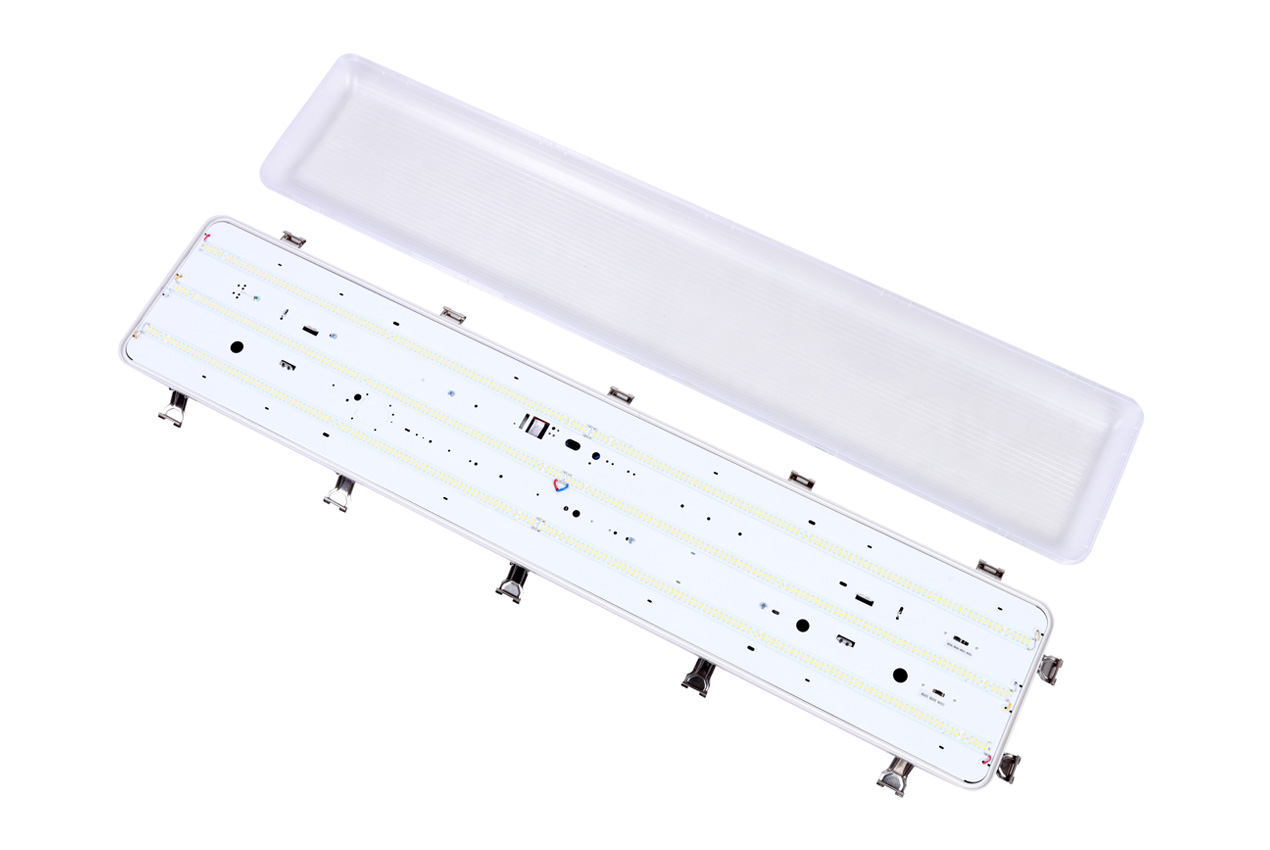

One piece gear tray for quick access to driver and accessories
Stainless steel spring clips
Polycarbonate low glare lens
1/2'' NPT entry
Power selectable (150W / 175W / 200W)
Colour selectable (3500K / 4000K / 5000K)
Certifications Listed:
cETL, DLC, DLCPremium, IK10, NEMA4X, NSF
CSC DLC Number:
S-Q06GYS, S-W30LGQ
CSC LED Warranty:
5 Year Warranty
Product Number:
VT4-200W-3P-3CCT-UD
Light Specifications
Beam Angle:
110
Colour Temperature:
3500K/4000K/5000K
CRI:
84
Dimmable:
0-10
Efficacy:
135 LM/W
Initial Lumens:
28379 lm
Life (L70):
>50,000 hrs
Electrical Specifications
Amperage:
2.0 A
IP Rating:
IP67
Operating Temperature:
-40°C to 55°C
Power Factor:
0.9
THD:
12.7%
Voltage:
120-347V
Watts:
150W/175W/200W
Construction Specifications
Finish Colour:
White/Grey
Housing:
Polycarbonate
Mounting Type:
Surface or Pendant
Logistics
Unit Weight:
15 lbs
Unit Length:
50.0 in
Unit Width:
10.0 in
Unit Height:
4.3 in
Qty per Master Carton:
1
Master Carton Weight:
17.0 lbs
Master Carton Length:
51.0 in
Master Carton Width:
10.8 in
Master Carton Height:
5.5 in
Qty per Skid:
60
