Power selectable 30W/40W/50W
3CCT selectable 3500K/4000K/5000K
Quick release lens
Opens and closes without tools
Internal 0-10V dimming with 12V auxiliary control

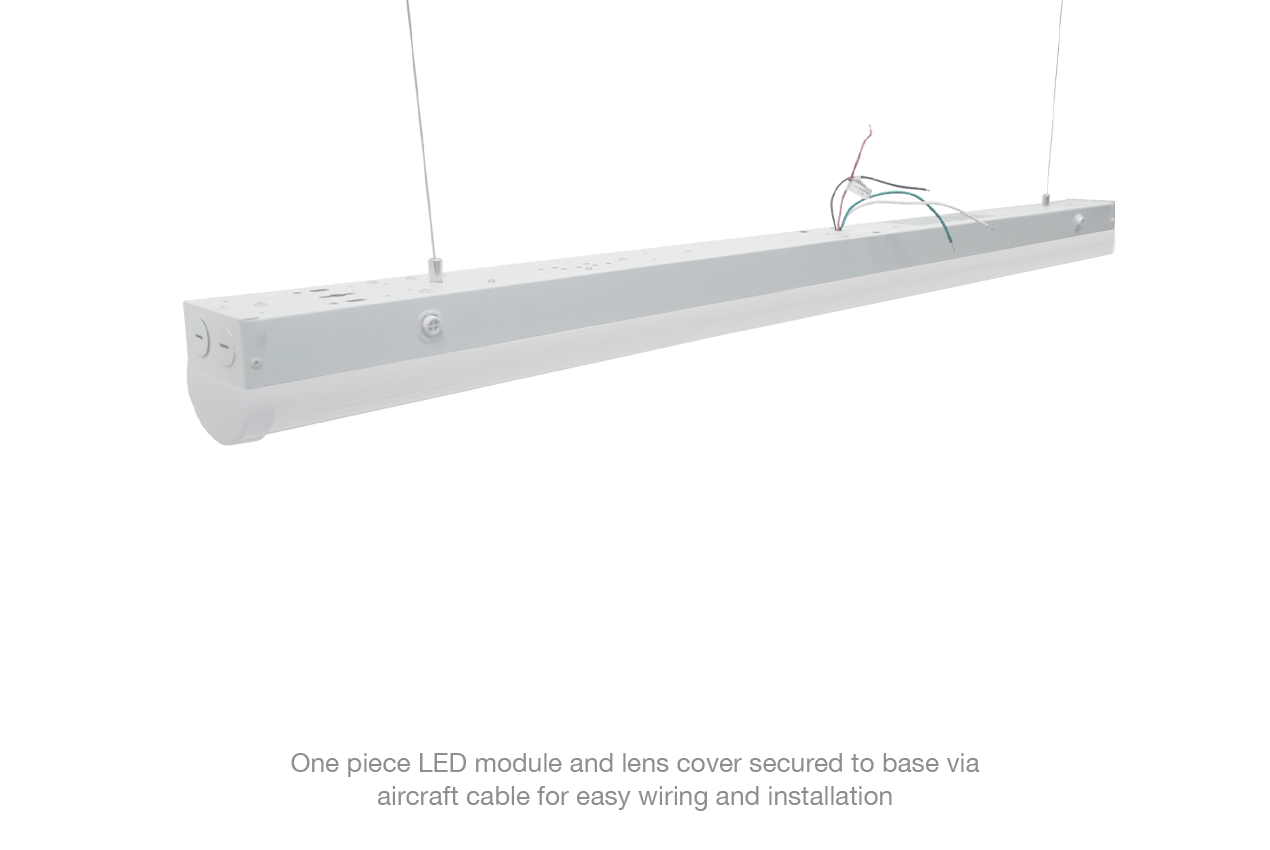

Cover secured to Base via aircraft cables
Low-glare polycarbonate lens for high durability
Row mountable
Certifications:
cUL, DLC, DLCPremium, IK08
CSC DLC Number:
S-H1S92Q, S-SKHT0Z, S-20LX86
Garantie CSC LED:
5 Year Warranty
Numéro de produit:

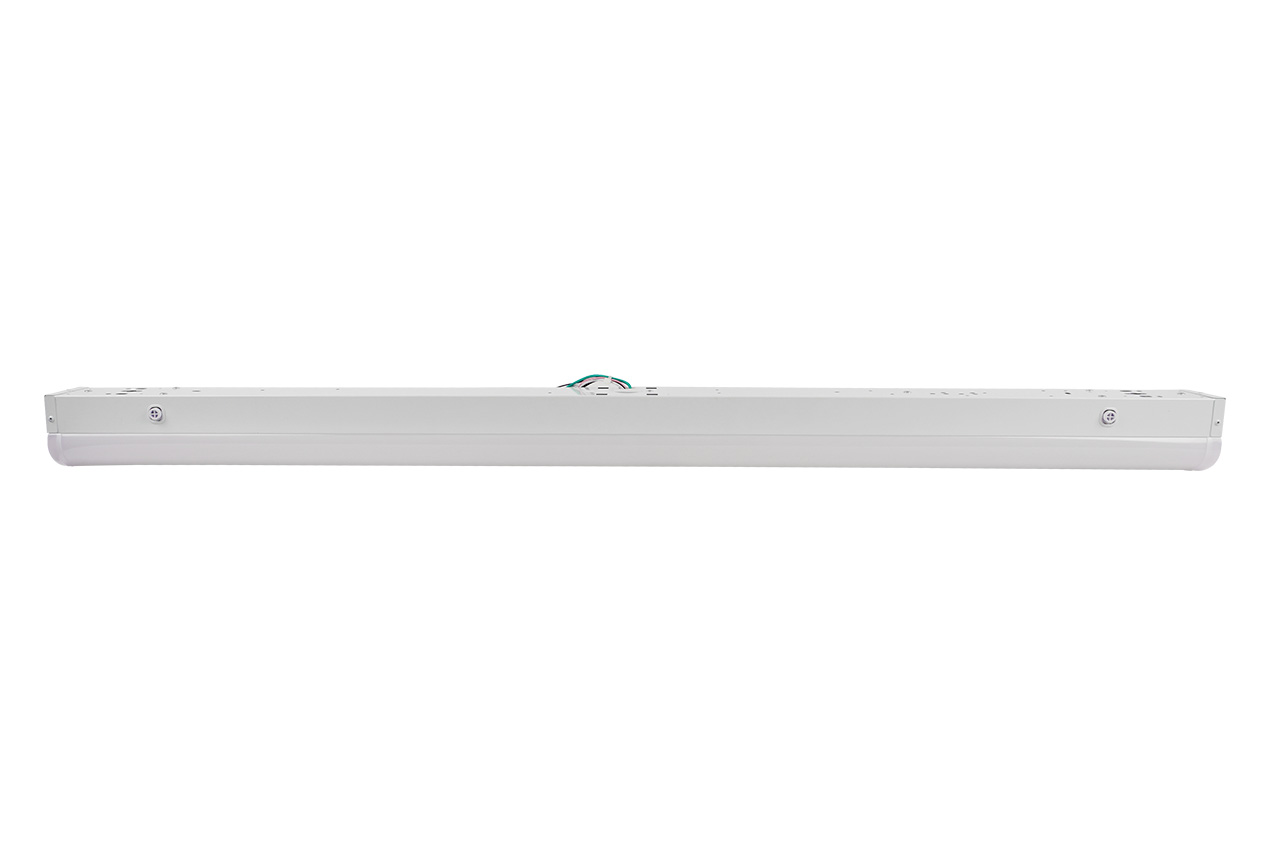

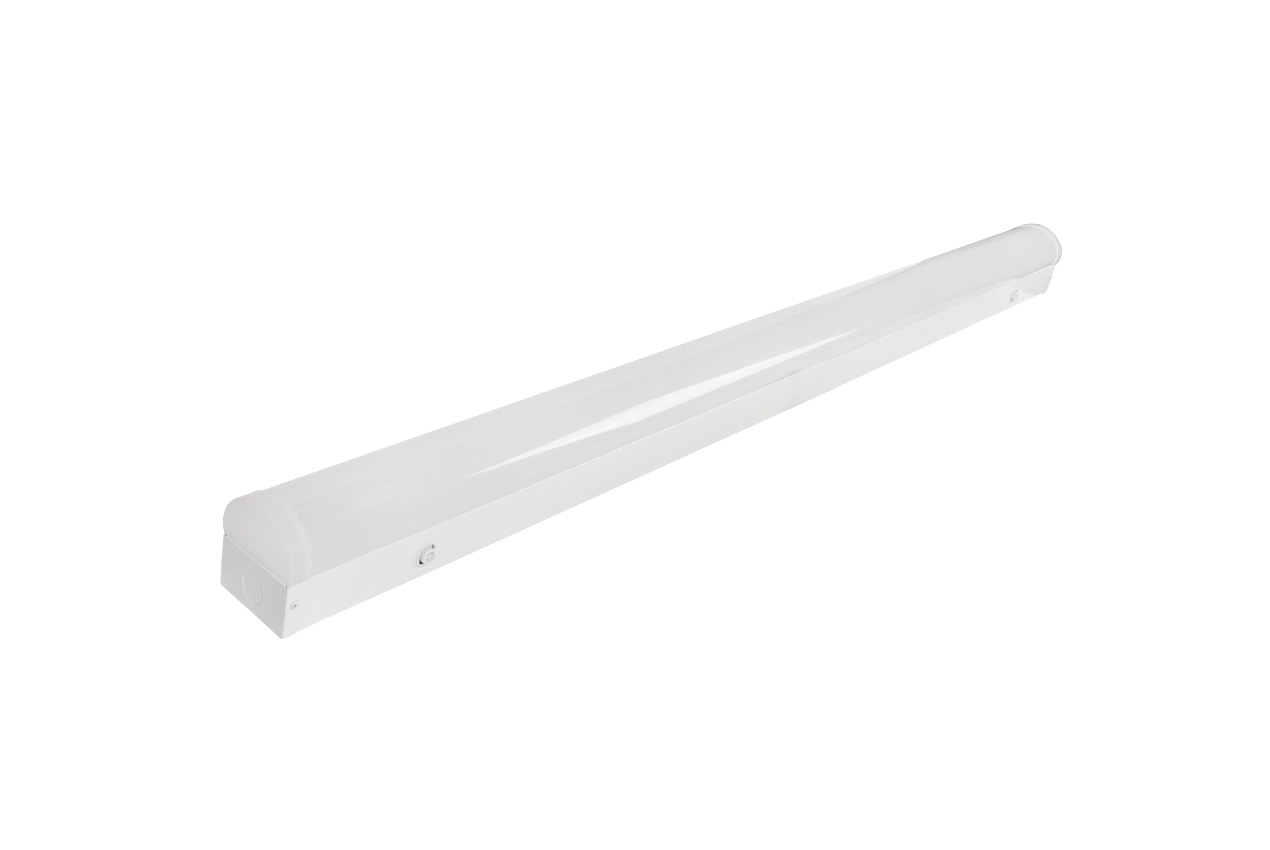

ST4B-50W-3P-3CCT-UD
Caractéristiques lumineuses
Angle du faisceau:
110°
Température de couleur:
3500 K/4000 K/5000 K
IRC:
80+
Dimmable:
0-10
Efficacité:
150 LM/W
Lumens initiaux:
7500 lm
Durée de vie (L70):
>50,000 hrs
Caractéristiques électriques
Amperage:
0.5 A
Indice IP:
IP 20
Température de fonctionnement:
-20°C to 45°C
Power Factor:
0.91
DHT:
20%
Tension:
120-347V
Watts:
30W/40W/50W
Caractéristiques de construction
Couleur de finition:
White
Boîtier:
Colour Coated Steel Plate
Logistique
Poids unitaire:
3.13 lbs
Unit Length:
48.1 in
Unit Width:
2.95 in
Unit Height:
3.3 in
Qté par carton:
1
Carton Weight:
3.68 lbs
Carton Length:
48.2 in
Carton Width:
3.2 in
Carton Height:
3.5 in
Qté par carton principal:
8
Poids du carton principal:
29.4 lbs
Longueur du carton principal:
49.4 in
Largeur du carton principal:
13.8 in
Hauteur du carton principal:
7.9 in
Qté par palette:
264
CUP:
845599061823
GTIN:
10845599061820
