ST8B-100W-3P-3CCT-UD
6 avis

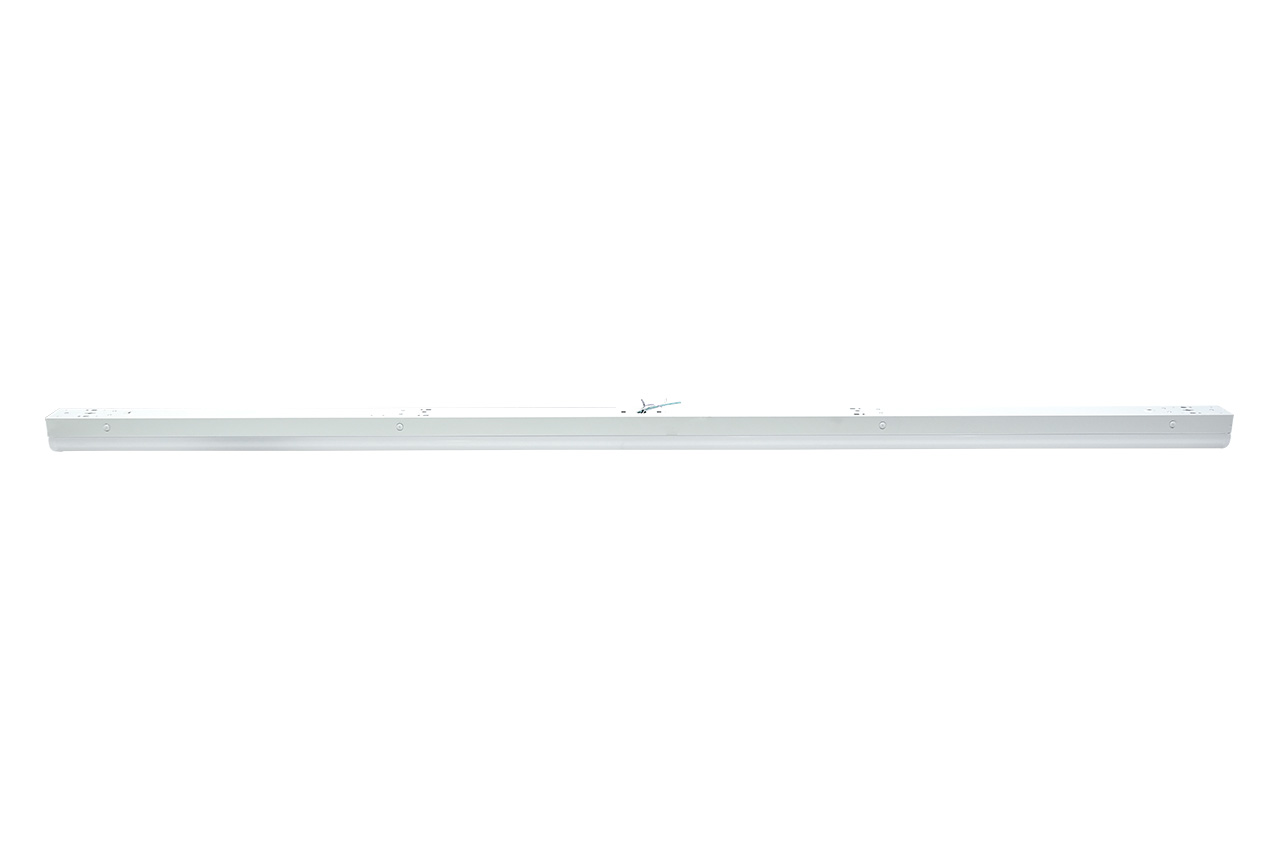

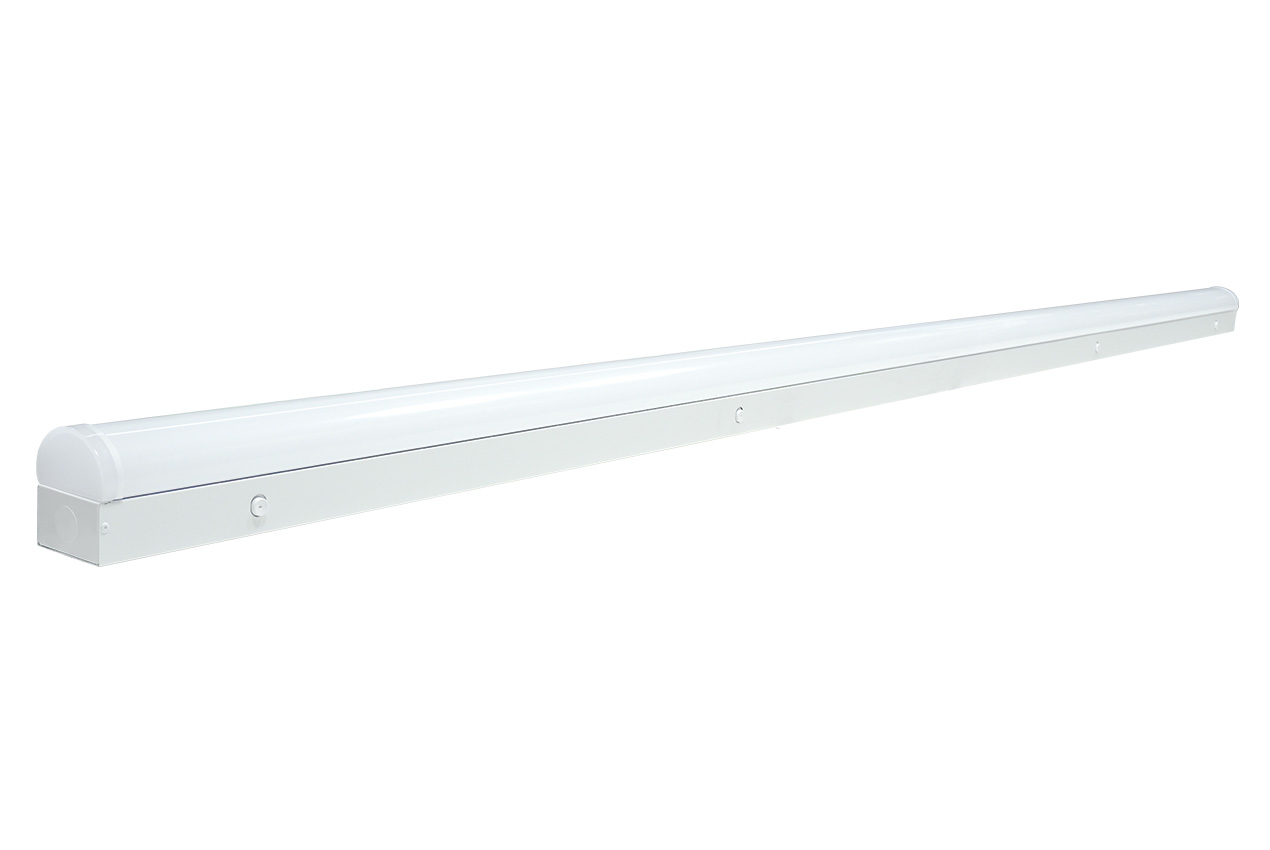

8' Strip Light
60W/80W/100W | 3CCT | 120-347V | 9480-15700 lm
GTIN / UPC : 10845599061868
Code-barres : 845599061861
6 avis
Power selectable 60W/80W/100W
3CCT selectable 3500K/4000K/5000K
Quick release lens
Opens and closes without tools
Internal 0-10V dimming with 12V auxiliary control

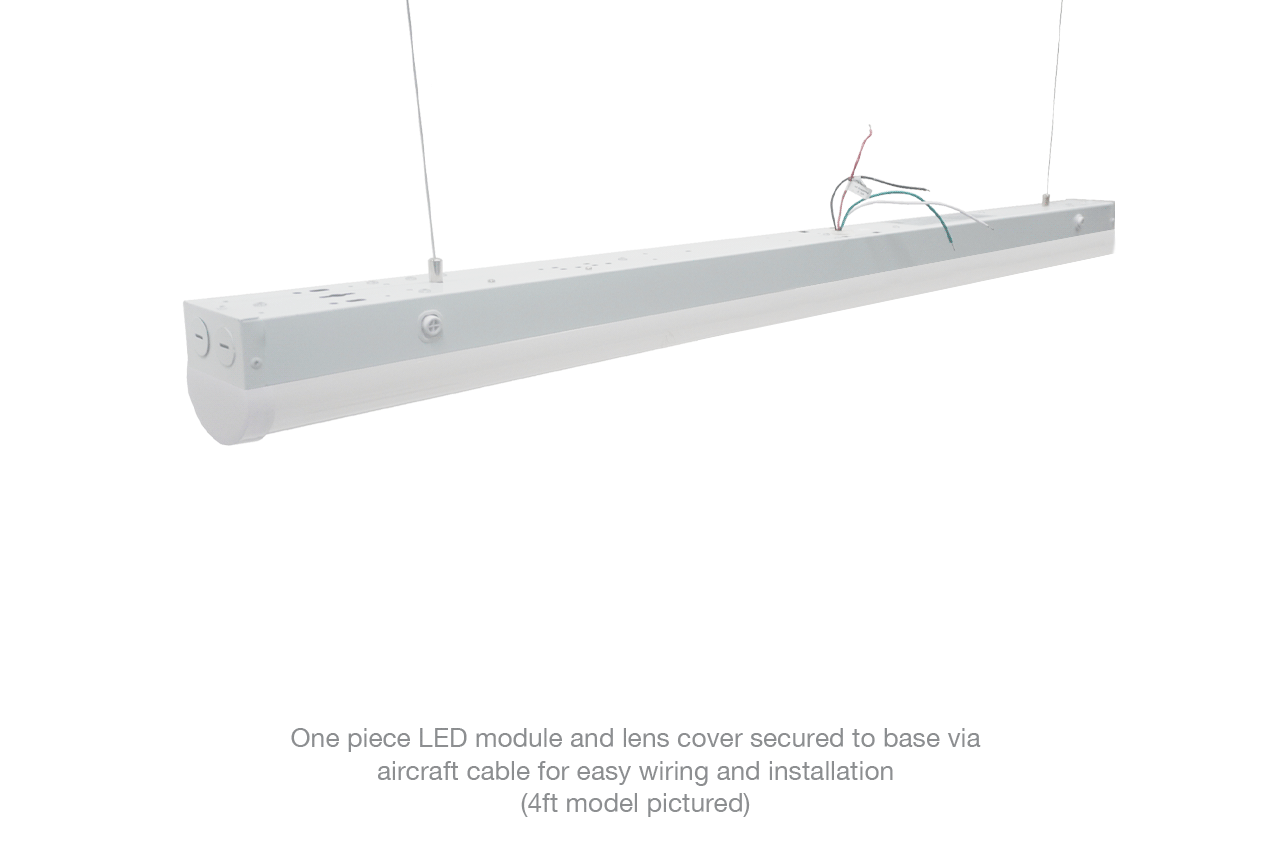

Cover secured to Base via aircraft cables
Low-glare polycarbonate lens for high durability
Row mountable
Certifications Listed:
cUL, DLC, DLCPremium, IK08
CSC DLC Number:
S-8YDFZN, S-ZQGQQ8, S-MTSZWY
CSC LED Warranty:
5 Year Warranty
Product Number:
ST8B-100W-3P-3CCT-UD
Light Specifications
Beam Angle:
120°
Colour Temperature:
3500K/4000K/5000K
CRI:
80+
Dimmable:
0-10V
Efficacy:
157 LM/W
Initial Lumens:
15584 lm
Life (L70):
>50,000 hrs
Electrical Specifications
Amperage:
0.9 A
IP Rating:
IP20
Operating Temperature:
-20°C to 45°C
Power Factor:
>0.9
THD:
<20%
Voltage:
120-347V
Watts:
60W/80W/100W
Construction Specifications
Finish:
Powder Coat
Finish Colour:
White
Housing:
Colour Coated Steel Plate
Mounting Type:
Surface or Suspended
Logistics
Unit Weight:
6.6 lbs
Unit Length:
95.98 in
Unit Width:
2.95 in
Unit Height:
3.26 in
Qty per Carton:
1
Carton Weight:
7.7 lbs
Carton Length:
96.38 in
Carton Width:
3.23 in
Carton Height:
3.54 in
Qty per Master Carton:
4
Master Carton Weight:
33.0 lbs
Master Carton Length:
97.0 in
Master Carton Width:
7.1 in
Master Carton Height:
7.9 in
Qty per Skid:
264
