ST4B-50W-3P-3CCT-UD-MS02-MW
6 avis
4' Strip Light
30W/40W/50W | 3CCT | 120-347V | 4740-7850 lm
GTIN / UPC : 10845599061837
Code-barres : 845599061830
6 avis
Built-in Motion Sensor with a 12' maximum mounting height
Power selectable 30W/40W/50W
3CCT selectable 3500K/4000K/5000K
Quick release lens
Opens and closes without tools
Internal 0-10V dimming with 12V auxiliary control

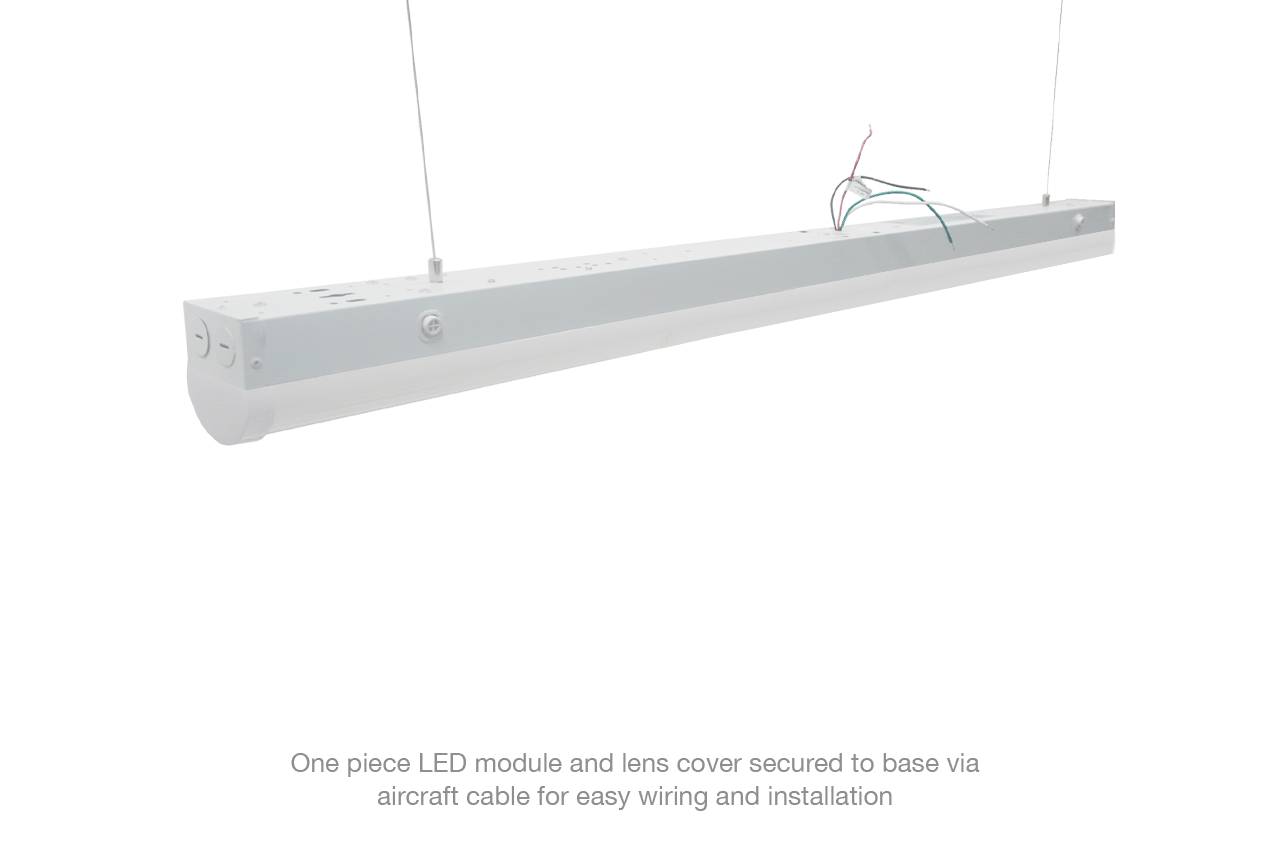

Cover secured to Base via aircraft cables
Low-glare polycarbonate lens for high durability
Row Mountable
Remote Control (MS02-RC) required and ordered separately
Certifications Listed:
cUL, DLC, DLCPremium, IK08
CSC DLC Number:
S-H1S92Q, S-SKHT0Z, S-20LX86
CSC LED Warranty:
5 Year Warranty
Product Number:
ST4B-50W-3P-3CCT-UD-MS02-MW
Light Specifications
Beam Angle:
110°
Colour Temperature:
3500K/4000K/5000K
CRI:
80+
Dimmable:
0-10
Efficacy:
150 LM/W
Initial Lumens:
7500 lm
Life (L70):
>50,000 hrs
Electrical Specifications
Amperage:
0.5 A
IP Rating:
IP20
Operating Temperature:
-20°C to 45°C
Power Factor:
0.9
THD:
20%
Voltage:
120-347V
Watts:
30W/40W/50W
Construction Specifications
Finish Colour:
White
Housing:
Colour Coated Steel Plate
Logistics
Unit Weight:
3.13 lbs
Unit Length:
48.1 in
Unit Width:
2.95 in
Unit Height:
3.3 in
Qty per Carton:
1
Carton Weight:
3.68 lbs
Carton Length:
48.2 in
Carton Width:
3.2 in
Carton Height:
3.5 in
Qty per Master Carton:
8
Master Carton Weight:
29.4 lbs
Master Carton Length:
49.4 in
Master Carton Width:
13.8 in
Master Carton Height:
7.9 in
Qty per Skid:
264
