Ideal for shops, cove lighting, and general area lighting
Quickest row mount fixture on the market
Power selectable (50W/60W/70W)
Colour selectable (3500K/4000K/5000K)
Designed for a quick and easy installation
Opens and closes without the use of tools

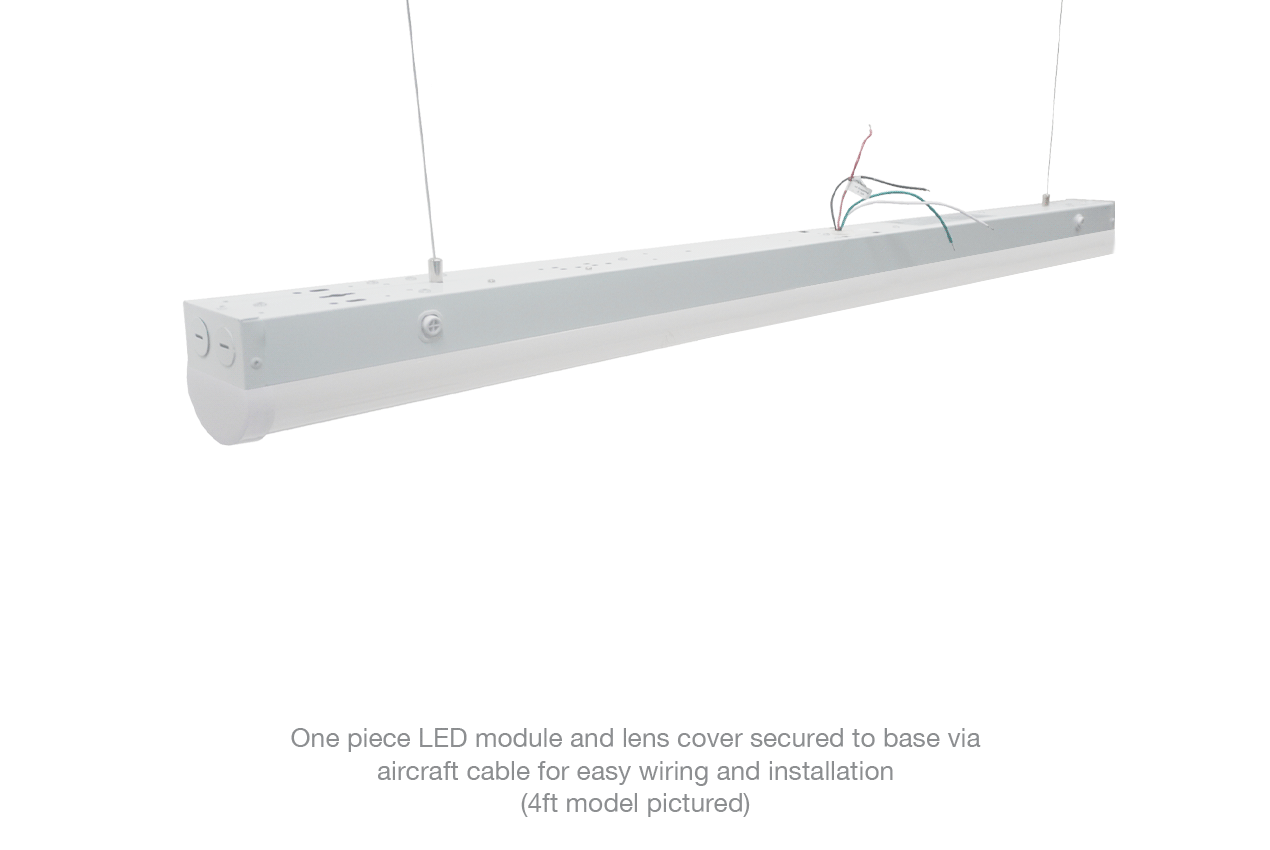

Light engine drops on aircraft cables for ease of installation
8' length
Certifications:
cUL, DLC, DLCPremium, IK08
CSC DLC Number:
S-QX38KO, S-ID8G6E, S-H5RH4X
Garantie CSC LED:
5 Year Warranty
Numéro de produit:
ST8B-70W-3P-3CCT-UD
Caractéristiques lumineuses
Angle du faisceau:
120
Température de couleur:
3500 K/4000 K/5000 K
IRC:
80+
Dimmable:
0-10
Efficacité:
150 LM/W
Lumens initiaux:
10500 lm
Durée de vie (L70):
>50,000 hrs
Caractéristiques électriques
Amperage:
0.8 A
Indice IP:
IP 20
Température de fonctionnement:
-20°C to 45°C
Power Factor:
0.91
DHT:
20%
Tension:
120-347V
Watts:
50W/60W/70W
Caractéristiques de construction
Couleur de finition:
White
Boîtier:
Colour Coated Steel Plate
Type de fixation:
Surface or Pendant
Logistique
Poids unitaire:
6.50 lbs
Unit Length:
95.98 in
Unit Width:
2.95 in
Unit Height:
3.26 in
Qté par carton:
1
Carton Weight:
6.75 lbs
Carton Length:
96.4 in
Carton Width:
3.2 in
Carton Height:
3.5 in
Qté par carton principal:
4
Poids du carton principal:
30.6 lbs
Longueur du carton principal:
97.0 in
Largeur du carton principal:
7.1 in
Hauteur du carton principal:
7.9 in
Qté par palette:
264
CUP:
845599061212
GTIN:
10845599061219
